RD25-ROLLER,DOUBLE DRUM

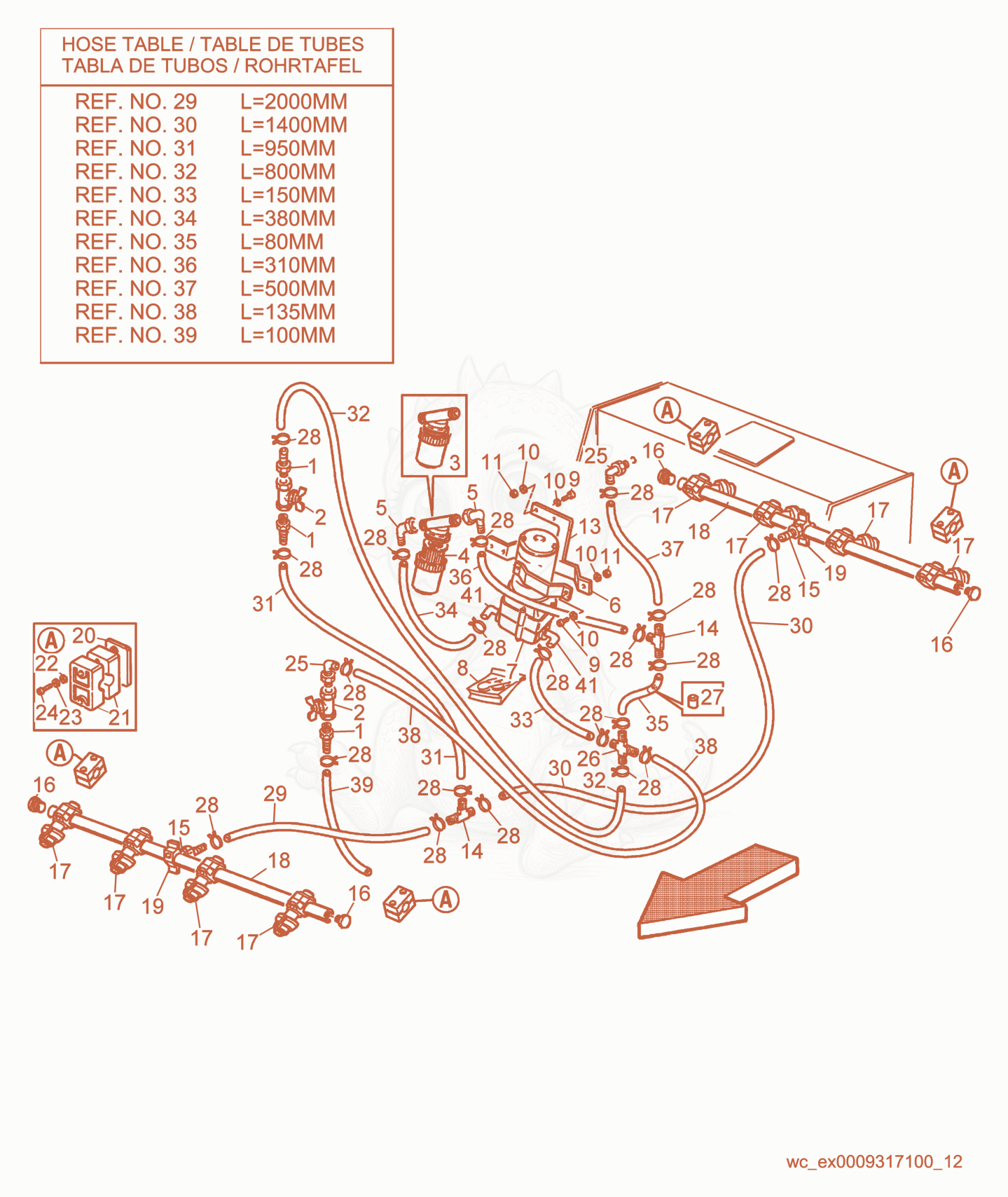

RD25 Water Sprinkling System Diagram
- FITTING - 5000150174×3
- Valve - 5000116717×2
- FILTER-WATER - 5000156839×1
- ELEMENT-FILTER - 5000156840×1
- FITTING-NIPPLE - 5000156841×2
- clamp - 5000156842×1
- PUMP-WATER - 5000156843×1
- GASKET SET-PUMP, WATER - 5000156844×1
- BOLT - 5000112768×4
- Washer - 5000112828×12
- NUT-LOCK - 5000112805×6
- clamp - 5000156845×1
- connector - 5000150173×2
- ELBOW-FITTING - 5000116714×2
- Plug - 5000110135×4
- JET-NOZZLE,SPRAY - 5000116722×8
- TUBE-WATER - 5000116713×2
- KIT-WATER SPRINKLING SYSTEM - 5000156846×2
- Plate - 5000112734×4
- Clamp - 5000112733×4
- Washer - 5000112826×8
- Washer - 5000112818×8
- BOLT - 5000112750×8
- FITTING-NIPPLE - 5000156847×2
- connector - 5000156848×1
- CONTROL-THROTTLE - 5000156849×1
- clamp - 5000155928×21
- hose - 5000156850×1
- hose - 5000156850×1
- NLA HOSE-WATER 12MM X 1000MM - 5000155942×1
- NLA HOSE-WATER 12MM X 1000MM - 5000155942×1
- NLA HOSE - 5000157712×1
- NLA HOSE - 5000157713×1
- NLA HOSE - 5000157712×1
- NLA HOSE - 5000157713×1
- NLA HOSE - 5000157713×1
- NLA HOSE - 5000157712×1
- NLA HOSE - 5000157712×1
- CONNECTOR-TUBING - 5000119764×2
