RD25-ROLLER,DOUBLE DRUM

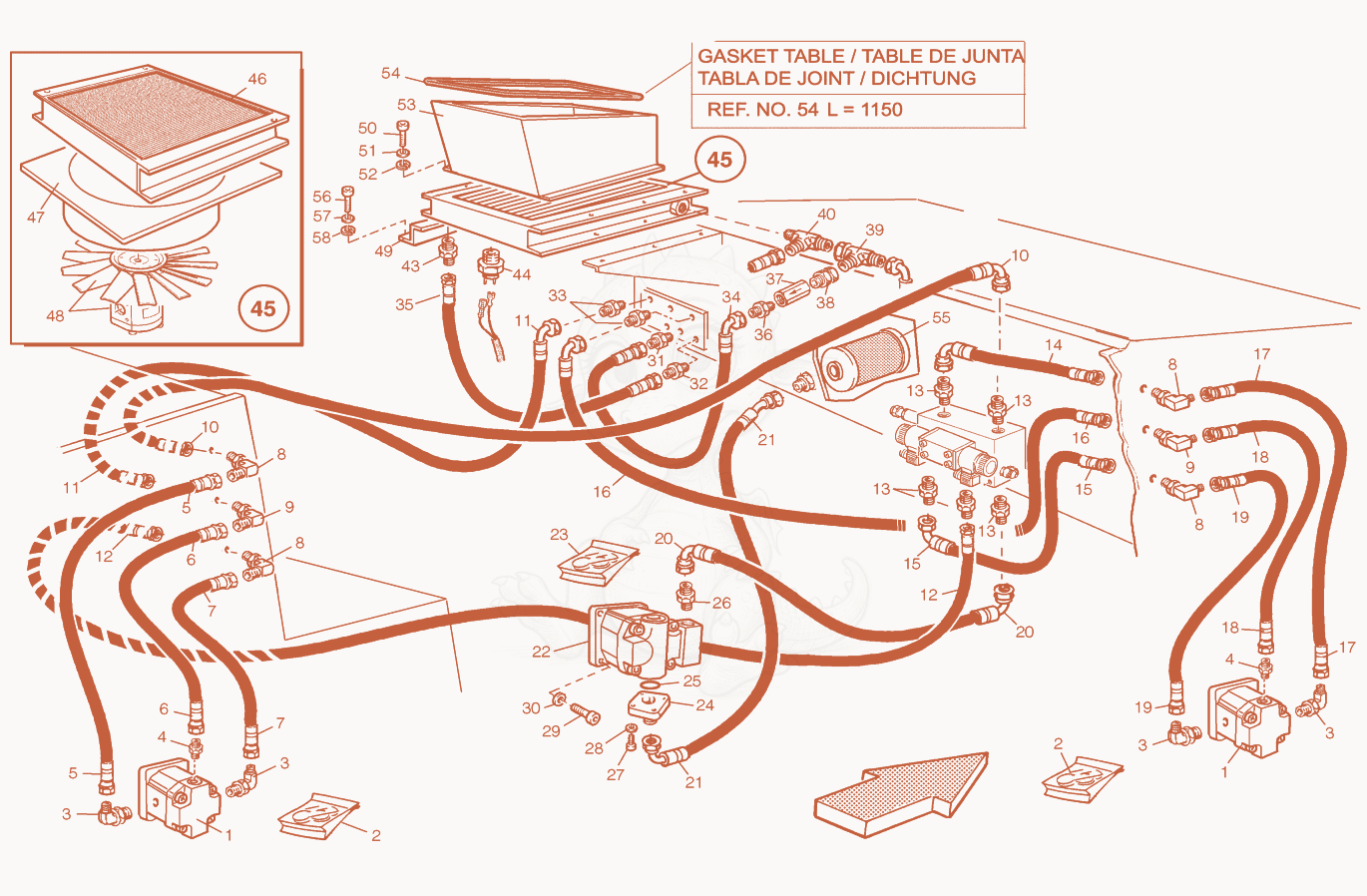

RD25 Vibrating Hydraulic System Diagram
- MOTOR-HYDRAULIC - 5000156802×2
- gasket set - 5000156803×2
- NLA CONNECTOR - 5000156827×4
- NLA FITTING - 5000112911×2
- hose - 5000156804×1
- Hose - 5000156805×1
- NLA HOSE - 5000156806×1
- NLA CONNECTOR - 5000112926×4
- NLA CONNECTOR - 5000112928×2
- HOSE-HYDRAULIC - 5000112954×1
- HOSE - 5000112963×1
- hose - 5000156807×1
- NLA FITTING - 5000112918×5
- NLA HOSE - 5000156808×1
- NLA HOSE-HYDRAULIC - 5000112951×1
- NLA HOSE - 5000117895×1
- NLA HOSE - 5000156809×1
- TUBE - 5000151596×1
- NLA HOSE - 5000156810×1
- hose - 5000156811×1
- Hose - 5000156812×1
- MOTOR-HYDRAULIC - 5000156813×1
- gasket set - 5000156814×1
- NLA FLANGE - 5000112920×1
- O-ring - 5000112485×1
- NLA FITTING - 5000112918×1
- bolt - 5000151620×4
- NLA WASHER 6.4 X 10 X 1.2 - 5000117932×4
- NLA BOLT - 5000112789×4
- WASHER-COPPER - 5000112836×4
- NLA FITTING-NIPPLE - 5000113530×1
- NLA FITTING-NIPPLE - 5000156815×1
- NLA FITTING - 5000112911×2
- hose - 5000156816×1
- hose - 5000156817×1
- FITTING - 5000112914×1
- NLA VALVE - 5000115538×1
- NLA CONNECTOR - 5000156818×1
- CONNECTOR - 5000156819×1
- FITTING-CONNECTOR - 5000112922×1
- NLA ADAPTER - 5000112893×1
- WASHER-COPPER - 5000112841×1
- NLA FITTING-NIPPLE - 5000156815×1
- SWITCH-THERMOSTAT - 5000112648×1
- NLA RADIATOR COMPLETE,RD25 - 5000158693×1
- NLA RADIATOR,RD25 - 5000158705×1
- HOUSING,RD25 - 5000158706×1
- FAN ASSEMBLY,RD25 - 5000158707×1
- BRACKET - 5000156822×1
- BOLT - 5000112763×6
- Washer - 5000112818×6
- Washer - 5000112826×6
- connector - 5000156823×1
- GASKET - 5000156824×1
- FILTER-OIL - 5000156825×1
- NLA BOLT - 5000112769×2
- Washer - 5000112820×2
- Washer - 5000112834×2
