RD25-ROLLER,DOUBLE DRUM

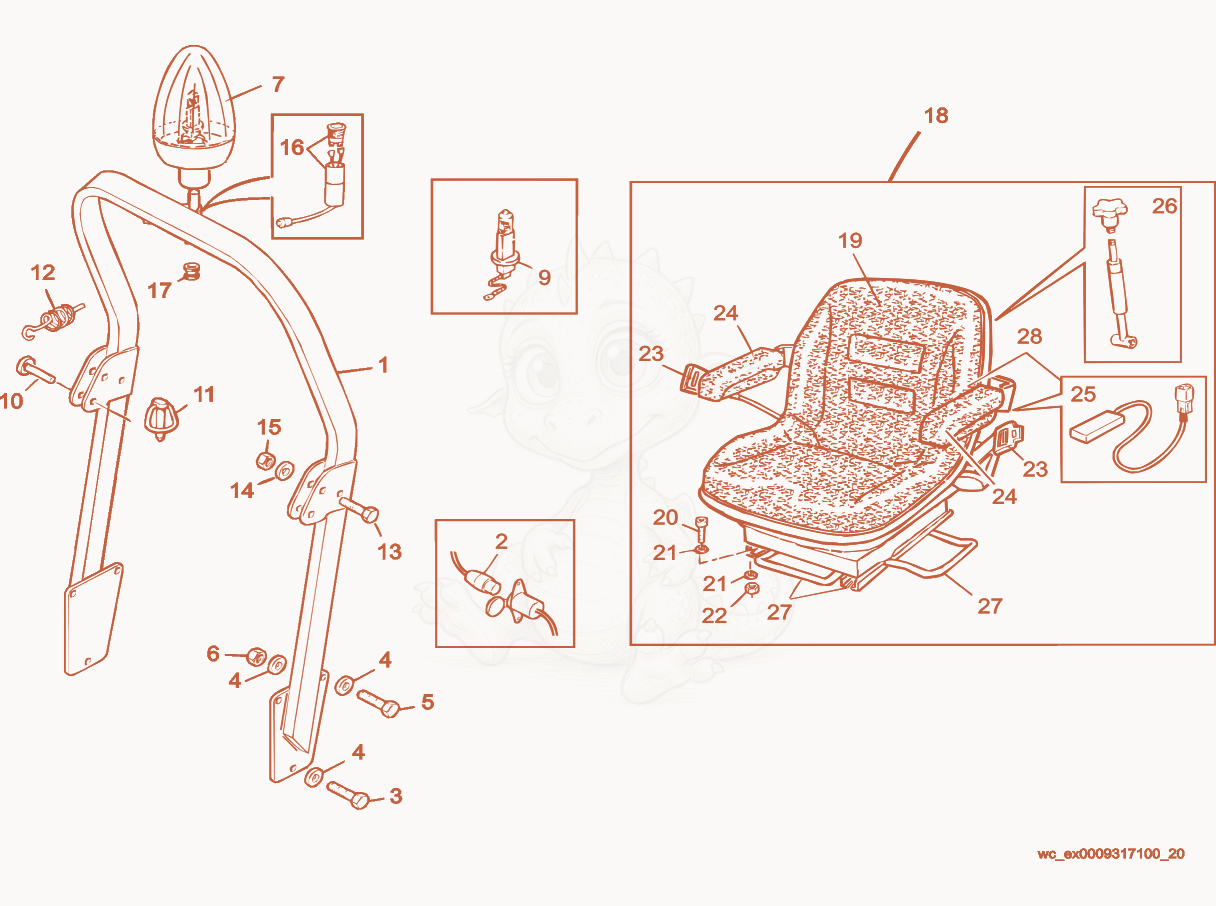

RD25 ROPS Protection/Seat Unit Diagram
- NLA GUARD-ROPS PROTECTION - 5000157341×1
- wiring harness - 5000157342×1
- NLA BOLT - 5000157343×2
- NLA WASHER - 5000157344×10
- NLA BOLT - 5000157345×4
- NLA NUT-LOCK - 5000112809×4
- LIGHT-INDICATOR - 5000157346×1
- LIGHT - 5000112863×1
- PIN - 5000114450×2
- PIN-RETAINING - 5000114449×2
- 125000155921Not stockedCable×2
- BOLT - 5000114467×2
- Washer - 5000114465×2
- NUT-LOCK - 5000113471×2
- MOUNT-CONNECTOR,LIGHT - 5000116287×1
- NLA GROMMET - 5000155920×1
- Seat assembly - 5000157347×1
- SEAT CUSHION - 5000115544×1
- BOLT - 5000113242×4
- washer - 5000155923×8
- Washer - 5000112828×4
- BELT ASSEMBLY - 5000157348×1
- KIT-ARMREST,FOLDING - 5000119163×1
- switch - 5000157349×1
- shock absorber - 5000155924×1
- NLA KIT-GUIDES - 5000112993×2
- NLA SEAT W/SWITCH - 5000160681×1
