RD25-ROLLER,DOUBLE DRUM

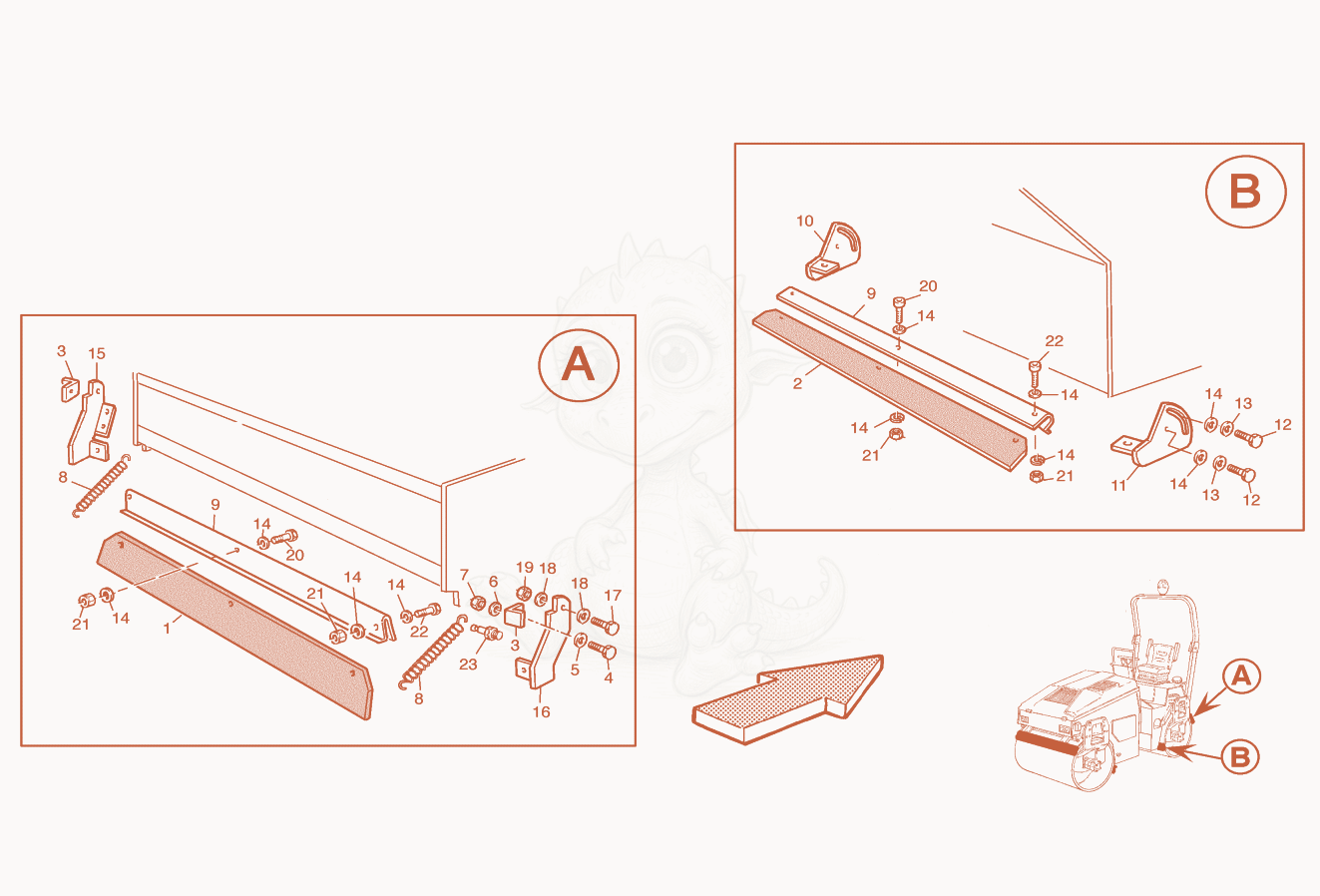

RD25 Rear Drum Scrapers Diagram
- SCRAPER - 5000156854×1
- Scraper - 5000156855×1
- clamp - 5000156856×2
- bolt - 5000156857×2
- Washer - 5000112828×4
- washer - 5000155923×2
- NUT-LOCK - 5000112805×2
- Spring - 5000110139×2
- BRACKET - 5000156858×2
- BRACKET-RIGHT SUPPORT - 5000156859×1
- BRACKET-LEFT SUPPORT - 5000156860×1
- BOLT - 5000112771×4
- Washer - 5000112820×4
- Washer - 5000118704×16
- BRACKET-RIGHT SUPPORT - 5000156861×1
- BRACKET-LEFT SUPPORT - 5000156862×1
- BOLT - 5000156863×2
- washer - 5000156919×2
- NUT-LOCK - 5000112808×4
- BOLT - 5000112772×2
- NUT-LOCK - 5000112806×6
- BOLT - 5000112773×4
- pin - 5000156864×2
