RD25-ROLLER,DOUBLE DRUM

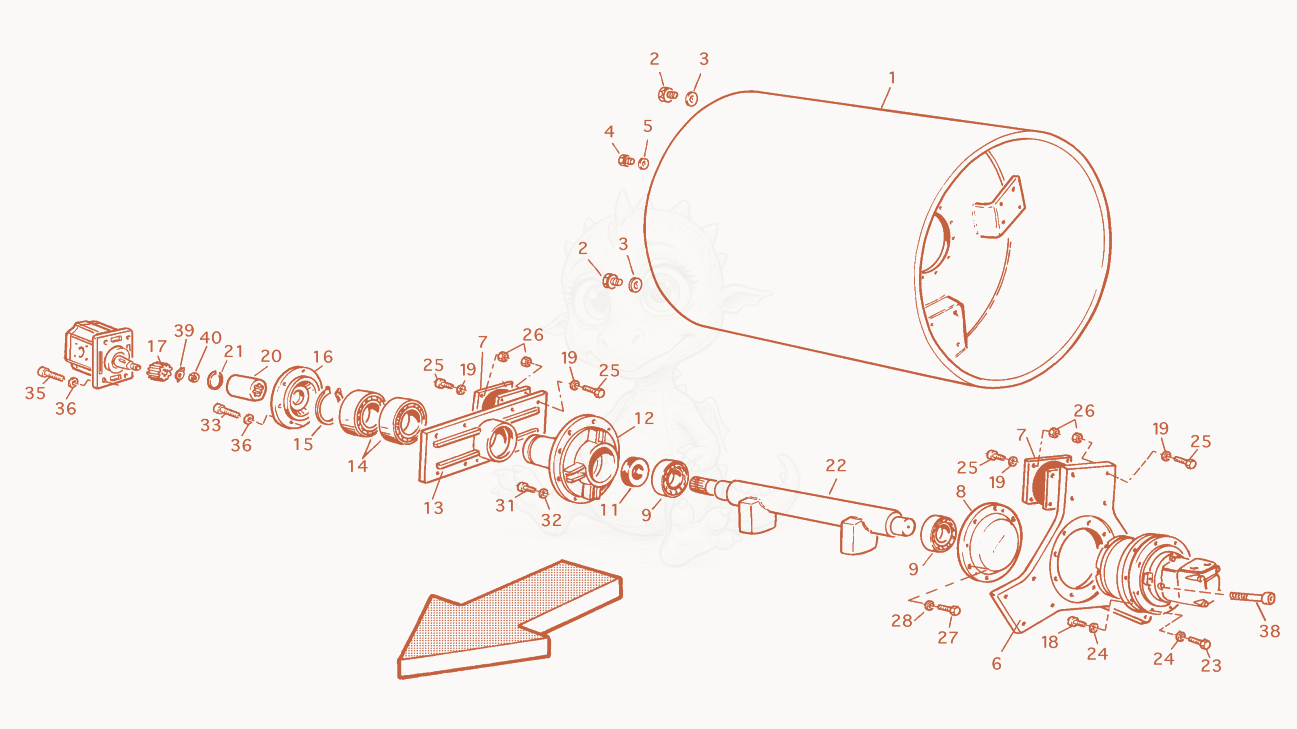

RD25 Driving/Vibrating Rear Drum Diagram
- drum - 5000156796×1
- PLUG - 5000112899×4
- WASHER-COPPER - 5000112840×4
- 45000112898Not stockedPlug (threaded)×1
- NLA WASHER-COPPER - 5000112839×1
- Flange - 5000156797×1
- Shockmount - 5000110138×5
- NLA COVER-SUPPORT - 5000113040×1
- BEARING - 5000110148×2
- SEAL - 5000112479×1
- Hub - 5000112641×1
- BRACKET-SUPPORT - 5000112647×1
- BEARING - 5000110147×2
- Ring - 5000112852×1
- Cover - 5000113024×1
- Gear - 5000112609×1
- BOLT - 5000112792×8
- Washer - 5000112820×96
- COUPLING - 5000112491×1
- Ring - 5000112854×1
- NLA SHAFT - 5000113018×1
- bolt - 5000112793×8
- Washer - 5000112820×16
- 255000112754Not stockedBolt×48
- NUT-LOCK - 5000112806×48
- BOLT - 5000112775×12
- Washer - 5000112821×12
- BOLT - 5000112775×12
- WASHER 13 X 24 X 1.6 - 5000117933×12
- BOLT - 5000112751×5
- BOLT - 5000112788×4
- Washer - 5000112819×9
- NLA BOLT - 5000112795×4
- NLA PLATE - 5000113059×1
- NLA NUT - 5000112801×1
