EW100

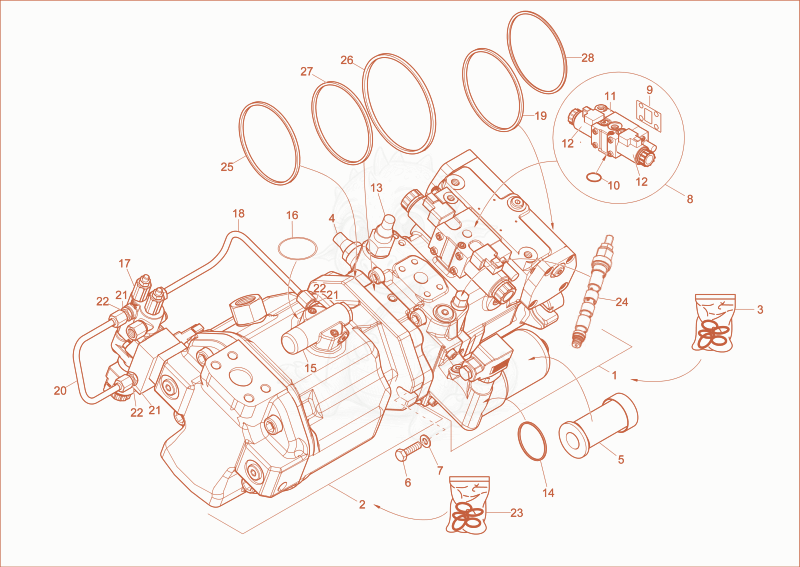

EW100 HYDRAULIC PUMP PART 2 Diagram

Exploded parts diagram of the HYDRAULIC PUMP PART 2 of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000152884
    $9,644.88
    Displacementpump 1000152884×1
  • 21000354145
    $12,492.89
    PUMP - 1000354145×1
  • 31000171530
    $687.50
    SEAL KIT - 1000171530×1
  • 41000165635
    $437.98
    X-1000089360 VALVE - 1000165635×1
  • 51000170874
    $254.42
    filter insert - 1000170874×1
  • 61000312122Not stocked
    hex screw×2
  • 71000312123
    $55.76
    WASHER - 1000312123×2
  • 81000171542
    $2,660.79
    Inchingvalve 1000171542×1
  • 91000247528
    $25.37
    seal - 1000247528×1
  • 101000090550
    $0.93
    o-ring - 1000090550×1
  • 111000124371
    $670.12
    inching device - 1000124371×1
  • 121000170352
    $522.29
    shift solenoid - 1000170352×2
  • 131000089359
    $1,131.97
    pressure limit reliefvalve - 1000089359×2
  • 141000171118
    $32.08
    O-RING - 1000171118×1
  • 151000312125Not stocked
    control valve×1
  • 161000312127
    $26.32
    Seal - 1000312127×1
  • 171000314364Not stocked
    control valve×1
  • 181000314366Not stocked
    pipes set×1
  • 191000140933
    $79.29
    seal ring - 1000140933×1
  • 201000314365Not stocked
    pipes set×1
  • 211000304007
    $45.88
    Screw Joint - 1000304007×4
  • 221000304008
    $22.17
    RING - 1000304008×4
  • 231000375634Not stocked
    seal kit×1
  • 241000089369
    $1,533.56
    shut off valve - 1000089369×1
  • 251000401057
    $204.64
    shaft seal - 1000401057×1
  • 261000113708
    $27.06
    SEAL RING - 1000113708×1
  • 271000090532
    $2.64
    O-RING - 1000090532×1
  • 281000140767
    $9.39
    lock ring - 1000140767×1
