EW100

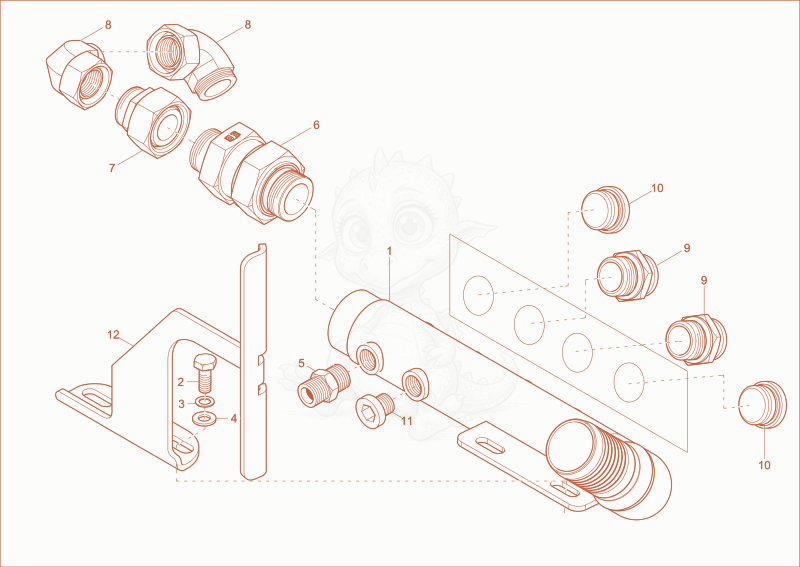

EW100 manifold Diagram

Exploded parts diagram of the manifold of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000159952
    $592.92
    Manifold 1000159952×1
  • 21000015364Not stocked
    hex screw×2
  • 31000015438Not stocked
    lock washer×2
  • 41000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 51000015493Not stocked
    screw joint×1
  • 61000165840
    $282.94
    ZS15/A-52/L35RD-6 - 1000165840×1
  • 71000085122
    $28.09
    RED35/28LOMDA3C - 1000085122×1
  • 81000085091
    $31.25
    EW28LOMDA3C - 1000085091×2
  • 91000015496Not stocked
    screw joint×2
  • 101000082787
    $19.16
    VSTI1EDA3C - 1000082787×2
  • 111000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×1
  • 121000380914Not stocked
    cable bracket×1
