EW100

EW100 BRAKE INSTALLTION Diagram

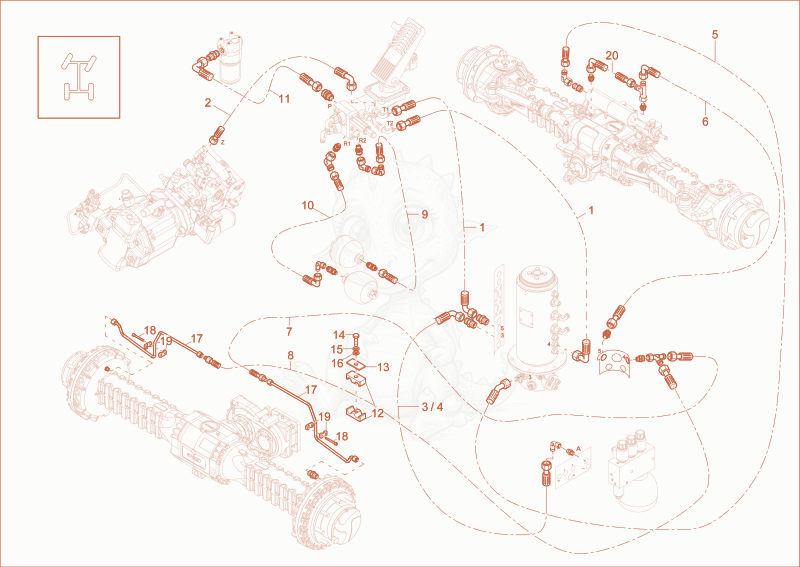

Exploded parts diagram of the BRAKE INSTALLTION of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000356025Not stocked
    Hose×2
  • 21000356479Not stocked
    Hose×1
  • 31000242122
    $36.42
    SLHYDR 1SC 8,0PN10 90 PN10 0 L1300 0 - 1000242122×1
  • 41000446068Not stocked
    Hose×1
  • 51000232658
    $78.68
    SLHYDR 2SC 8,0PN10 0 PN10 45 L1550 - 1000232658×1
  • 61000150074
    $62.66
    SLHYDR 2SC 8,0PN10 0 PN10 90 L1900 0 - 1000150074×1
  • 71000242430
    $59.22
    SLHYDR 2SC 8,0PN10 0 PD10 0 L1500 0 - 1000242430×1
  • 81000242429
    $52.44
    SLHYDR 2SC 8,0PN10 0 PD10 0 L1200 0 - 1000242429×1
  • 91000076890
    $20.52
    SLHYDR 2SC 10 PN12 90 PN12 0 L450,0 0 - 1000076890×1
  • 101000077112
    $14.36
    SLHYDR 2SC 10 PN12 90 PN12 0 L400,0 0 - 1000077112×1
  • 111000356030Not stocked
    Hose×1
  • 121000083285
    $1.23
    clamp Body - 1000083285×1
  • 131000022379Not stocked
    cover plate×1
  • 141000015370Not stocked
    hex screw×1
  • 151000015437Not stocked
    lock washer×1
  • 161000015431Not stocked
    washer×1
  • 171000183905
    $50.12
    pipe line - 1000183905×2
  • 181000015369Not stocked
    cheese head screw×4
  • 191000022378
    $4.64
    clamp body - 1000022378×2
  • 201000167898
    $36.49
    SLHYDR 2SC 8,0PN10 0 PN10 90 L380,0 0 - 1000167898×1
