EW100

EW100 connection (option) Diagram

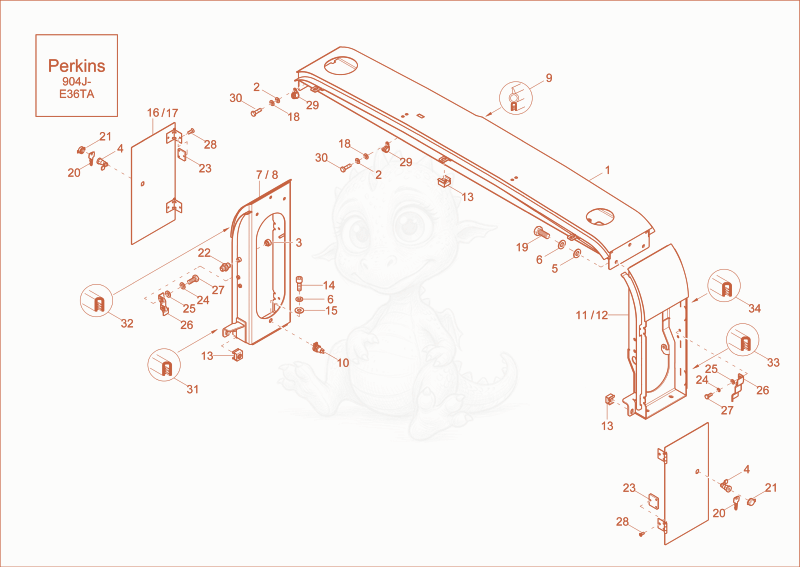

Exploded parts diagram of the connection (option) of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000411022Not stocked
    connection×1
  • 21000015436Not stocked
    lock washer×2
  • 31000150878
    $24.68
    LUG - 1000150878×1
  • 41000069463Not stocked
    cylinder lock×2
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 61000015438Not stocked
    lock washer×10
  • 71000294944
    $1,042.79
    Connection 1000294944×1
  • 81000295604
    $552.07
    Connection 1000295604×1
  • 91000097922
    $19.67
    rubber profile - 1000097922×0.45
  • 101000002902Not stocked
    socket×1
  • 111000451662Not stocked
    connection×1
  • 121000417487Not stocked
    connection×1
  • 131000094959
    $1.13
    Korgmutter M10 4,8-6,2 - 1000094959×5
  • 141000015376Not stocked
    cheese head screw×4
  • 151000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×4
  • 161000180990
    $206.81
    Door 1000180990×2
  • 171000166228
    $282.03
    Door 1000166228×2
  • 181000015430Not stocked
    u-washer×2
  • 191000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×6
  • 201000184819
    $14.17
    EZ17 Key without cap - 1000184819×2
  • 211000168922
    $6.62
    DUST CAP - 1000168922×2
  • 221000015488Not stocked
    screw joint×1
  • 231000163579
    $38.75
    thread plate - 1000163579×4
  • 241000015437Not stocked
    lock washer×4
  • 251000015431Not stocked
    washer×4
  • 261000295662
    $52.93
    locking sheet - 1000295662×2
  • 271000013008Not stocked
    hex screw×4
  • 281000082505
    $0.70
    countersunk screw - 1000082505×12
  • 291000068818Not stocked
    clamp×2
  • 301000020553Not stocked
    hex screw×2
  • 311000098163
    $5.21
    edge protection - 1000098163×0.17
  • 321000098163
    $5.21
    edge protection - 1000098163×0.17
  • 331000098163
    $5.21
    edge protection - 1000098163×0.17
  • 341000098163
    $5.21
    edge protection - 1000098163×0.17
