EW100

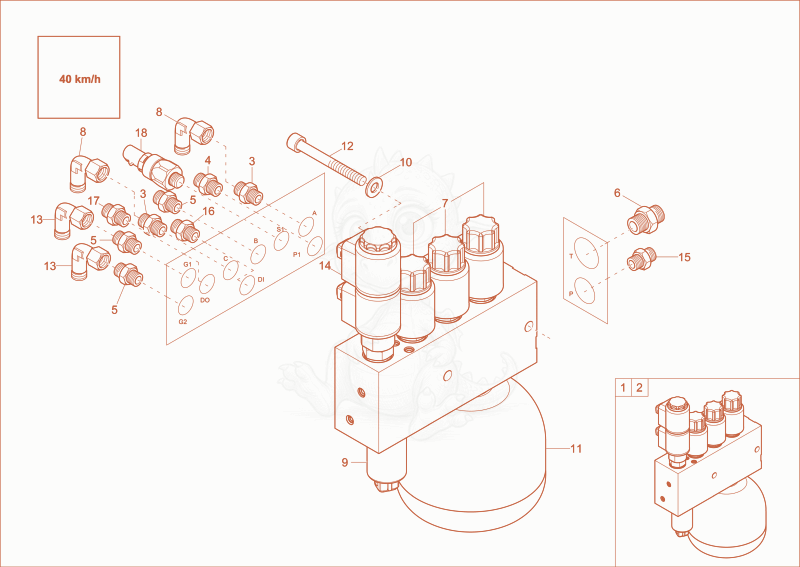

EW100 controloil unit Diagram

Exploded parts diagram of the controloil unit of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000294925
    $2,204.88
    Valveblock 1000294925×1
  • 21000330827Not stocked
    controloil unit×1
  • 31000015490Not stocked
    screw joint×2
  • 41000015489Not stocked
    screw joint×1
  • 51000015488Not stocked
    screw joint×3
  • 61000015493Not stocked
    screw joint×1
  • 71000311380Not stocked
    directional valve×3
  • 81000015510Not stocked
    screw joint×2
  • 91000279511
    $374.52
    solenoid valve - 1000279511×1
  • 101000015437Not stocked
    lock washer×2
  • 111000307672
    $201.05
    accumulator - 1000307672×1
  • 121000082530
    $1.18
    cheese head screw - 1000082530×2
  • 131000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 141000311421Not stocked
    directional valve×1
  • 151000082844
    $5.84
    GE10LR1/2EDOMDA3C - 1000082844×1
  • 161000015488Not stocked
    screw joint×1
  • 171000344187Not stocked
    screw joint×1
  • 181000270085
    $78.27
    PRESSURE SWITCH - 1000270085×1
