EW100

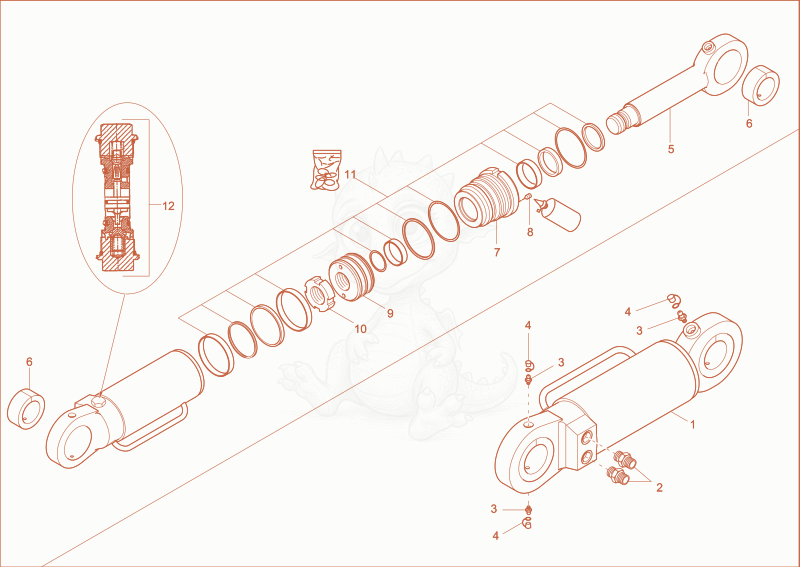

EW100 CYLINDER FOR DOOZER BLADE OR STABILIZERS Diagram

Exploded parts diagram of the CYLINDER FOR DOOZER BLADE OR STABILIZERS of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000155784
    $7,000.57
    Bladecylinder 1000155784×2
  • 21000000558Not stocked
    screw joint×4
  • 31000015476Not stocked
    grease nipple×6
  • 41000015480Not stocked
    cap grease nipple×6
  • 51000172613
    $1,886.80
    PISTON ROD - 1000172613×2
  • 61000172614
    $207.05
    pivoting bearing - 1000172614×4
  • 71000172615
    $445.72
    guide bushing - 1000172615×2
  • 81000172616
    $8.99
    thread pin - 1000172616×2
  • 91000172617
    $318.99
    PISTON - 1000172617×2
  • 101000172618
    $77.89
    set nut - 1000172618×2
  • 111000172620
    $773.92
    seal kit - 1000172620×2
  • 121000186074
    $1,114.05
    non return valve - 1000186074×1
