EW100

EW100 wiring harness engine Diagram

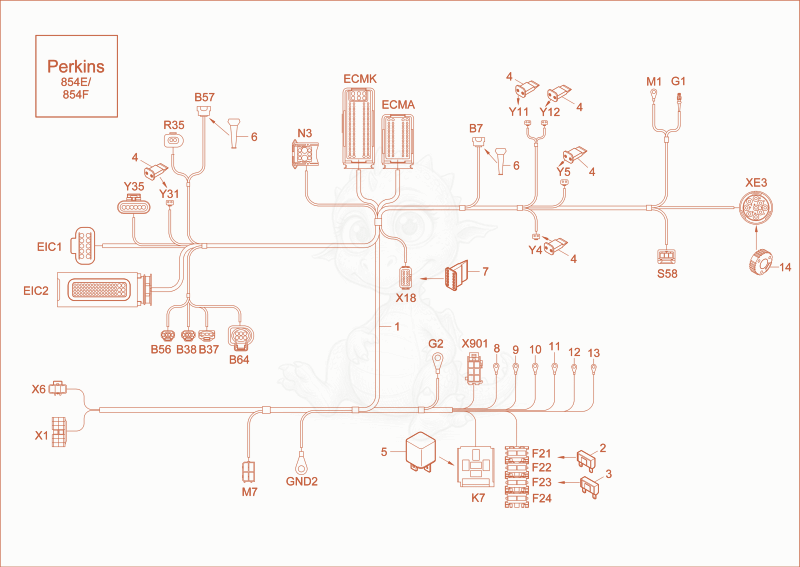

Exploded parts diagram of the wiring harness engine of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000295112
    $1,721.24
    wiring harness engine - 1000295112×1
  • 21000052490
    $0.46
    fuse - 1000052490×2
  • 31000085683
    $0.55
    FUSE - 1000085683×2
  • 41000027442Not stocked
    wedge×5
  • 51000353649Not stocked
    relay×1
  • 61000027466Not stocked
    protecting cap×2
  • 71000240117
    $4.36
    locking pin - 1000240117×1
  • 81000101271
    $1.91
    cable lug - 1000101271×1
  • 91000101271
    $1.91
    cable lug - 1000101271×1
  • 101000101271
    $1.91
    cable lug - 1000101271×1
  • 111000101271
    $1.91
    cable lug - 1000101271×1
  • 121000101271
    $1.91
    cable lug - 1000101271×1
  • 131000101271
    $1.91
    cable lug - 1000101271×1
  • 141000277443
    $22.68
    protecting cap - 1000277443×1
  • B371000168235
    $20.80
    bushing housing - 1000168235×1
  • B381000311735Not stocked
    bushing housing×1
  • B561000311737
    $9.99
    bushing housing - 1000311737×1
  • B571000027332
    $3.80
    housing - 1000027332×1
  • B641000311739Not stocked
    bushing housing×1
  • B71000027332
    $3.80
    housing - 1000027332×1
  • ECMA1000288543
    $40.69
    Plug Sleeve Housing - 1000288543×1
  • ECMK1000288545
    $34.18
    Plug Sleeve Housing - 1000288545×1
  • EIC11000288541
    $7.65
    Plug Sleeve Housing - 1000288541×1
  • EIC21000260163
    $44.53
    plug sleeve housing - 1000260163×1
  • F211000027144Not stocked
    fixing bracket×1
  • F221000104418
    $3.84
    FUSE HOLDER - 1000104418×1
  • F231000104418
    $3.84
    FUSE HOLDER - 1000104418×1
  • F241000104418
    $3.84
    FUSE HOLDER - 1000104418×1
  • G11000311610Not stocked
    bushing housing×1
  • G21000100364
    $3.82
    cable lug - 1000100364×1
  • GND21000107754
    $2.77
    cable lug - 1000107754×1
  • K71000026997
    $8.05
    SOCKETS - 1000026997×1
  • M11000096859
    $1.08
    CABLE LUG - 1000096859×1
  • M71000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • N31000288540
    $11.06
    Plug Sleeve Housing - 1000288540×1
  • R351000315298Not stocked
    housing×1
  • S581000126017
    $8.07
    Plug housing - 1000126017×1
  • X11000100618
    $7.48
    Pin housing - 1000100618×1
  • X181000240016
    $11.63
    plug sleeve housing - 1000240016×1
  • X61000104417
    $17.31
    Plug housing - 1000104417×2
  • X9011000099201
    $2.87
    bushing housing - 1000099201×1
  • XE31000298661
    $386.76
    pin housing - 1000298661×1
  • Y111000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y121000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y311000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y351000315299Not stocked
    housing×1
  • Y41000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • Y51000270365
    $6.40
    Plug Deutsch - 1000270365×1
