EW100

EW100 change over valve (Option) Diagram

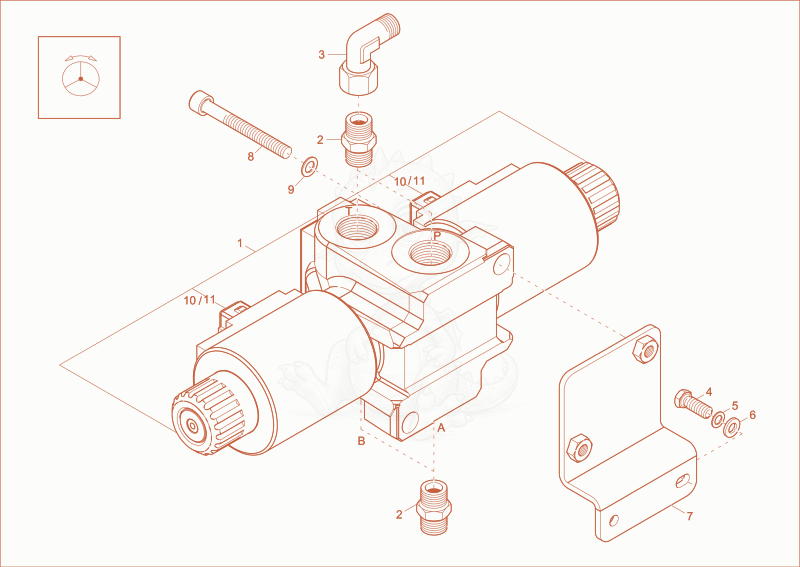

Exploded parts diagram of the change over valve (Option) of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000377411Not stocked
    directional valve×1
  • 21000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×4
  • 31000000573Not stocked
    screw joint×2
  • 41000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 51000015436Not stocked
    lock washer×2
  • 61000015430Not stocked
    u-washer×2
  • 71000264115
    $45.01
    FASTEN PLATE - 1000264115×1
  • 81000085497
    $0.90
    cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×2
  • 91000015437Not stocked
    lock washer×2
  • 101000375937Not stocked
    magnet spool×2
  • 111000377350Not stocked
    magnet spool×2
