EW100

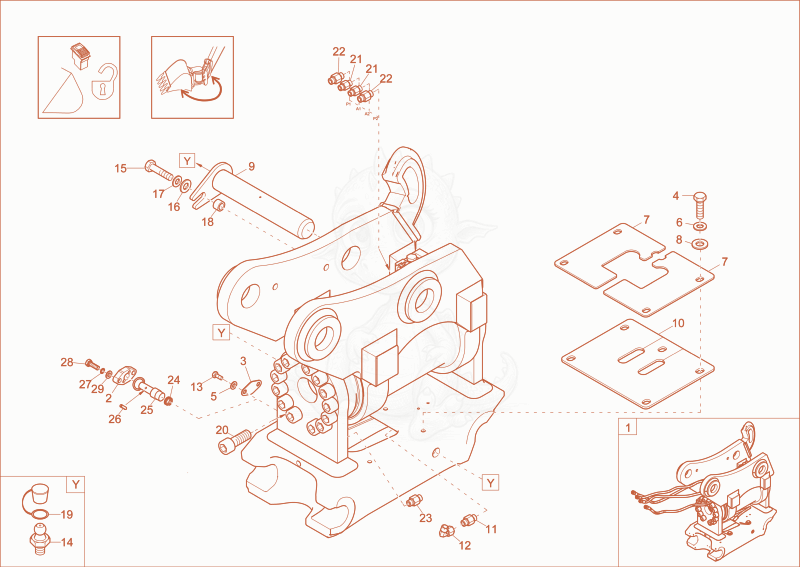

EW100 Easy Lock Powertlit (Option) Diagram

Exploded parts diagram of the Easy Lock Powertlit (Option) of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000406077Not stocked
    POWERTILT×1
  • 21000185303
    $5.92
    cover plate - 1000185303×1
  • 31000278341
    $7.93
    clamping strap - 1000278341×1
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 51000015431Not stocked
    washer×2
  • 61000015438Not stocked
    lock washer×4
  • 71000405988
    $132.64
    COVER - 1000405988×2
  • 81000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×4
  • 91000396308
    $195.48
    PIN - 1000396308×2
  • 101000405987Not stocked
    protecting rubber×1
  • 111000248875
    $27.91
    extension - 1000248875×2
  • 121000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 131000019136Not stocked
    hex screw×2
  • 141000015476Not stocked
    grease nipple×4
  • 151000015381Not stocked
    hex screw×2
  • 161000085613
    $0.10
    washer - 1000085613×2
  • 171000082609
    $0.73
    lock washer - 1000082609×2
  • 181000154698
    $4.06
    WASHER - 1000154698×2
  • 191000015480Not stocked
    cap grease nipple×4
  • 201000423302
    $17.82
    SCREW - 1000423302×14
  • 211000015488Not stocked
    screw joint×2
  • 221000015490Not stocked
    screw joint×2
  • 231000015530Not stocked
    screw joint×2
  • 241000185302
    $7.99
    pressure spring - 1000185302×1
  • 251000185290
    $93.54
    PIN - 1000185290×1
  • 261000175885
    $1.42
    cotter pin - 1000175885×1
  • 271000015437Not stocked
    lock washer×2
  • 281000015343Not stocked
    hex screw×2
  • 291000015431Not stocked
    washer×2
