EW100

EW100 WIRE HARNESS SWITCH (OPTION) Diagram

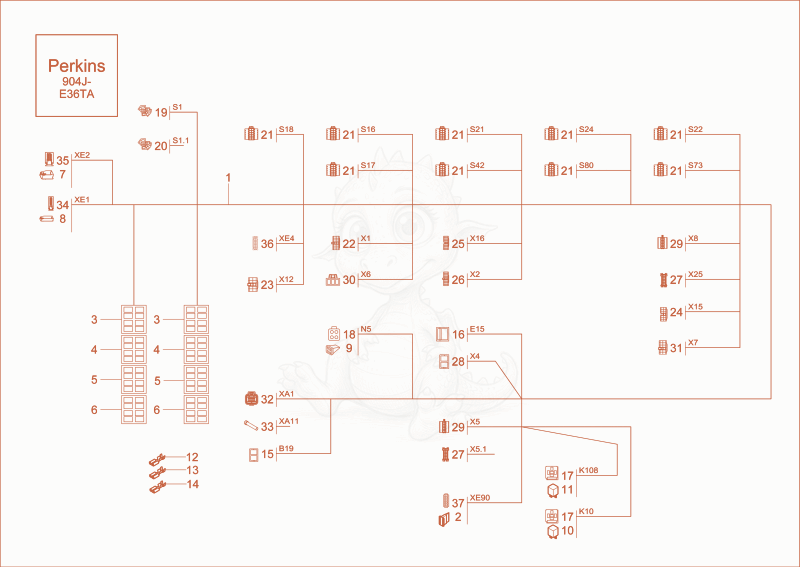

Exploded parts diagram of the WIRE HARNESS SWITCH (OPTION) of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000440517Not stocked
    wiring harness×1
  • 21000148272
    $2.17
    Pin housing - 1000148272×1
  • 31000101620
    $8.84
    Socket housing - 1000101620×2
  • 41000101621
    $8.84
    Socket housing - 1000101621×2
  • 51000101622
    $8.84
    Socket housing - 1000101622×2
  • 61000101623
    $8.84
    Socket housing - 1000101623×2
  • 71000295297
    $2.73
    cover cap - 1000295297×1
  • 81000295298
    $12.10
    cover cap - 1000295298×1
  • 91000104287
    $0.99
    wedge - 1000104287×1
  • 101000015315Not stocked
    relay×1
  • 111000333390Not stocked
    relay×1
  • 121000351849
    $1.18
    plug sleeve - 1000351849×1
  • 131000229869
    $1.41
    PLUG SLEEVE - 1000229869×1
  • 141000351845
    $0.70
    plug sleeve - 1000351845×1
  • 151000095336Not stocked
    plug sleeve housing×1
  • 161000027435Not stocked
    insulating sleeve×3
  • 171000026997
    $8.05
    SOCKETS - 1000026997×2
  • 181000104286
    $11.39
    bushing housing - 1000104286×1
  • 191000027368Not stocked
    central plug×1
  • 201000027386
    $6.47
    PLUG - 1000027386×1
  • 211000103949
    $5.74
    bushing housing - 1000103949×9
  • 221000095331
    $6.16
    plug sleeve housing - 1000095331×1
  • 231000095321
    $5.84
    bushing housing - 1000095321×1
  • 241000100618
    $7.48
    Pin housing - 1000100618×1
  • 251000118478
    $5.26
    plug sleeve housing - 1000118478×1
  • 261000118531
    $5.84
    plug sleeve housing - 1000118531×1
  • 271000271156
    $7.77
    pin housing - 1000271156×2
  • 281000325528
    $16.47
    CONTACT-HOUSING - 1000325528×1
  • 291000100971
    $4.24
    bushing housing - 1000100971×2
  • 301000100608
    $8.99
    plug sleeve housing - 1000100608×1
  • 311000095332
    $5.74
    plug sleeve housing - 1000095332×1
  • 321000306995
    $18.27
    PLUG - 1000306995×1
  • 331000163264
    $6.38
    Plug - 1000163264×1
  • 341000295179
    $62.73
    plug sleeve housing - 1000295179×1
  • 351000295178
    $20.92
    plug sleeve housing - 1000295178×1
  • 361000165663
    $123.63
    bushing housing - 1000165663×1
  • 371000254182
    $29.32
    bushing housing - 1000254182×1
