EW100

EW100 COOLER (Option) Diagram

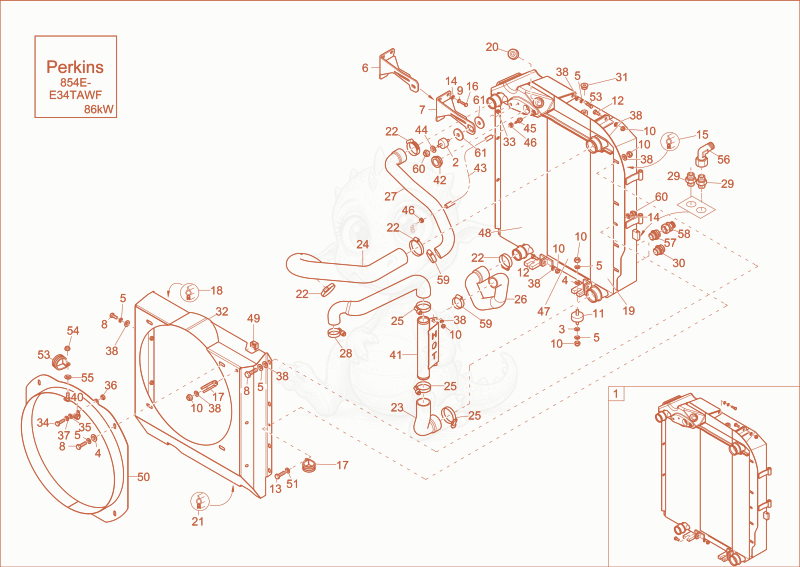

Exploded parts diagram of the COOLER (Option) of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000306427
    $1,717.09
    combicooler - 1000306427×1
  • 21000061792Not stocked
    rubber buffer×1
  • 31000015434Not stocked
    washer×4
  • 41000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×8
  • 51000015438Not stocked
    lock washer×21
  • 61000293483
    $47.33
    Bracketcooler 1000293483×1
  • 71000334002
    $25.77
    BRACKET - 1000334002×1
  • 81000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×11
  • 91000015437Not stocked
    lock washer×3
  • 101000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×18
  • 111000079864
    $10.46
    METAL- RUBBER BUFFER - 1000079864×4
  • 121000015364Not stocked
    hex screw×6
  • 131000015343Not stocked
    hex screw×1
  • 141000015431Not stocked
    washer×4
  • 151000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×1.3
  • 161000019136Not stocked
    hex screw×3
  • 171000274288
    $4.42
    pipe clamp RSGU 1.45/20-W1 - 1000274288×2
  • 181000097922
    $19.67
    rubber profile - 1000097922×0.7
  • 191000291696
    $1,020.98
    Aircooler 1000291696×1
  • 201000247396
    $17.97
    cooler cap - 1000247396×1
  • 211000097922
    $19.67
    rubber profile - 1000097922×0.7
  • 221000083310
    $2.41
    hose clamp 50-70mm - 1000083310×4
  • 231000293487
    $967.38
    hose - 1000293487×1
  • 241000295682
    $198.61
    air suction hose - 1000295682×1
  • 251000165515
    $25.75
    hose clamp - 1000165515×3
  • 261000293475
    $69.51
    WATER HOSE - 1000293475×1
  • 271000293474
    $102.25
    WATER HOSE - 1000293474×1
  • 281000303516
    $22.99
    hose clamp - 1000303516×1
  • 291000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×2
  • 301000085107
    $42.45
    GE28LR11/4EDOMDA3C - 1000085107×1
  • 311000022438Not stocked
    screw joint×1
  • 321000311617Not stocked
    Radiator scoop×1
  • 331000082789
    $3.42
    VSTIM14X1,5EDA3C - 1000082789×1
  • 341000085382
    $0.70
    HEX SCREW - 1000085382×1
  • 351000015430Not stocked
    u-washer×1
  • 361000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 371000015436Not stocked
    lock washer×1
  • 381000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×22
  • 391000293488
    $520.41
    hose - 1000293488×1
  • 401000032218Not stocked
    pipe clamp×1
  • 411000293489
    $244.84
    pipe line - 1000293489×1
  • 421000002989Not stocked
    view glass×1
  • 431000293935
    $16.67
    pipe line - 1000293935×0.7
  • 441000013027Not stocked
    washer×1
  • 451000264009
    $12.00
    screw joint 8mm / 1/2" -20 UNF-28 - 1000264009×1
  • 461000267809
    $3.22
    clamp hose 15.3 - 1000267809×2
  • 471000291695
    $1,488.39
    Oilcooler 1000291695×1
  • 481000291694
    $1,393.08
    Watercooler 1000291694×2
  • 491000094958
    $1.08
    Korgmutter M10 1,8-3,2 - 1000094958×4
  • 501000291692
    $463.49
    Spacer 1000291692×1
  • 511000013027Not stocked
    washer×1
  • 521000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 531000083325
    $7.53
    pipe clamp RSGU 1.50/20 - 1000083325×1
  • 541000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 551000015431Not stocked
    washer×1
  • 561000020261
    $17.85
    EW22LOMD - 1000020261×1
  • 571000063848Not stocked
    non return valve×1
  • 581000085122
    $28.09
    RED35/28LOMDA3C - 1000085122×1
  • 591000096844
    $3.64
    hose clamp W1 44-60/12 - 1000096844×2
  • 601000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 611000334003
    $4.06
    shim - 1000334003×2
