EW100

EW100 VALVE Diagram

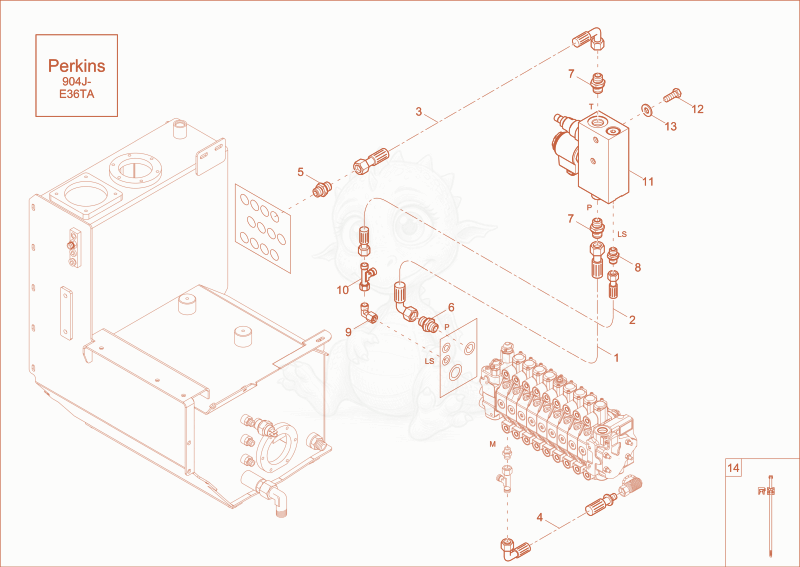

Exploded parts diagram of the VALVE of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000356477Not stocked
    Hose×1
  • 21000446722Not stocked
    Hose×1
  • 31000446723Not stocked
    Hose×1
  • 41000357082Not stocked
    Hose×1
  • 51000082987
    $4.62
    GE12LR1/4OROMDA3C - 1000082987×1
  • 61000015493Not stocked
    screw joint×1
  • 71000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 81000015488Not stocked
    screw joint×1
  • 91000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 101000015515Not stocked
    screw joint×1
  • 111000426533Not stocked
    valve×1
  • 121000013008Not stocked
    hex screw×2
  • 131000015448Not stocked
    washer×2
  • 141000301292
    $7.59
    clip - 1000301292×1
