EW100

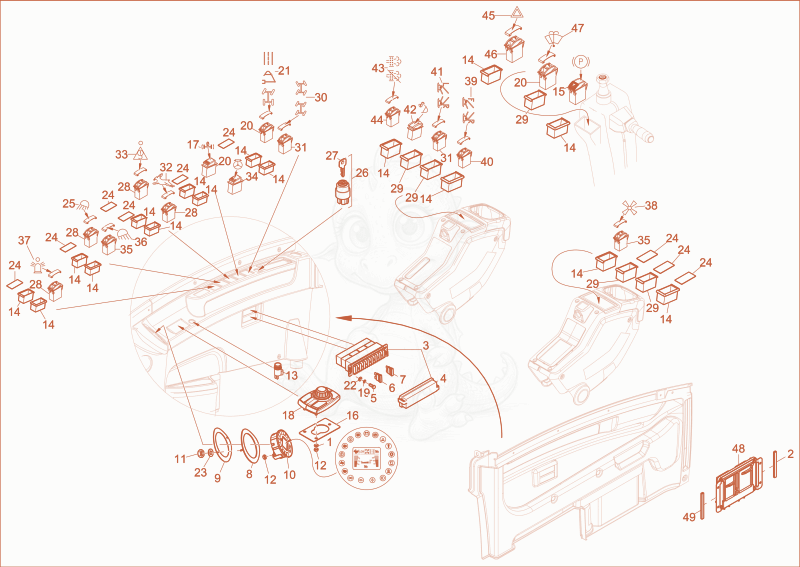

EW100 instrument panel Diagram
- 11000015430Not stockedu-washer×2
- edge protection - 1000097928×0.1
- FUSE BOX - 1000124067×2
- cover fuse box - 1000124068×2
- hex screw - 1000085375×4
- fuse - 1000085682×8
- FUSE - 1000085683×8
- instrument panel - 1000294947×1
- frame - 1000294950×1
- 101000325121Not stockedindicator instrument×1
- nut M4-8 A2C-DIN985 - 1000082547×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
- 131000069027Not stockedcigaret lighter×1
- 141000027168Not stockedswitch frame×16
- x -1000353560 tilt switch - 1000155128×1
- COVER - 1000295233×1
- tilt switch - 1000183945×1
- 181000316232Not stockedControl System Unit×1
- lock washer - 1000082612×4
- 201000353601Not stockedfeeler×2
- symbol - 1000309735×1
- washer 4,3 DIN125 - 1000094961×4
- washer 4,3 DIN9021 - 1000119981×2
- 241000027006Not stockedblind cover×5
- symbol headlight - 1000096654×1
- Ignition lock-R-1000125516 - 1000184001×1
- EZ17 Key without cap - 1000184819×1
- 281000353495Not stockedtilt switch×4
- 291000027178Not stockedswitch frame×5
- insert - 1000309726×1
- tilt switch - 1000164589×2
- SYMBOL HIGH SPEED - 1000098306×1
- symbol - 1000264530×1
- tilt switch - 1000104808×1
- 351000353588Not stockedtilt switch×2
- 361000052361Not stockedsymbol×1
- 371000052356Not stockedsymbol×1
- 381000052358Not stockedsymbol×1
- symbol - 1000264535×1
- TILT SWITCH - 1000164588×1
- symbol - 1000264534×1
- switch - 1000191010×1
- SYMBOL - 1000284519×1
- 441000353597Not stockedtilt switch×1
- symbol - 1000142880×1
- 461000353603Not stockedtilt switch×1
- symbol wiper - 1000098303×1
- CONTROL UNIT - 1000292881×1
- edge protection - 1000097928×0.1
