EW100

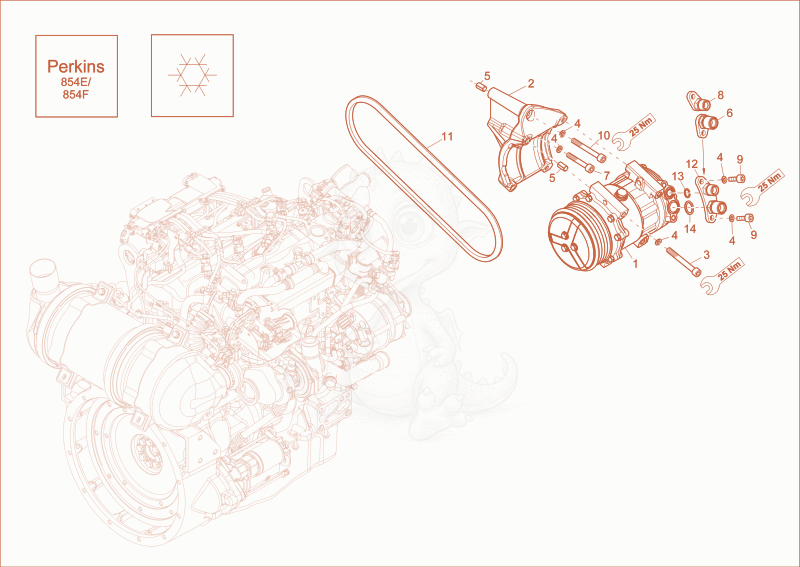

EW100 ADDITIONAL PARTS OPTION AIR-CONDITIONING Diagram

Exploded parts diagram of the ADDITIONAL PARTS OPTION AIR-CONDITIONING of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000301421
    $749.75
    Compressoraircondition 1000301421×1
  • 21000282897
    $568.43
    Bracketcompressor 1000282897×1
  • 31000099331
    $0.42
    cheese head screw - 1000099331×4
  • 41000015437Not stocked
    lock washer×9
  • 51000287582
    $4.06
    cotter pin - 1000287582×4
  • 61000301423
    $465.59
    adapter - 1000301423×1
  • 71000085465
    $1.06
    cheese head screw - 1000085465×2
  • 81000301425
    $163.27
    adapter - 1000301425×1
  • 91000019450Not stocked
    cheese head screw×2
  • 101000082427
    $1.33
    cheese head screw - 1000082427×1
  • 111000287564
    $118.42
    strip - 1000287564×1
  • 121000330826
    $64.09
    Adapter - 1000330826×1
  • 131000345706
    $14.12
    O-RING - 1000345706×1
  • 141000345705
    $8.88
    O-RING - 1000345705×1
