EW100

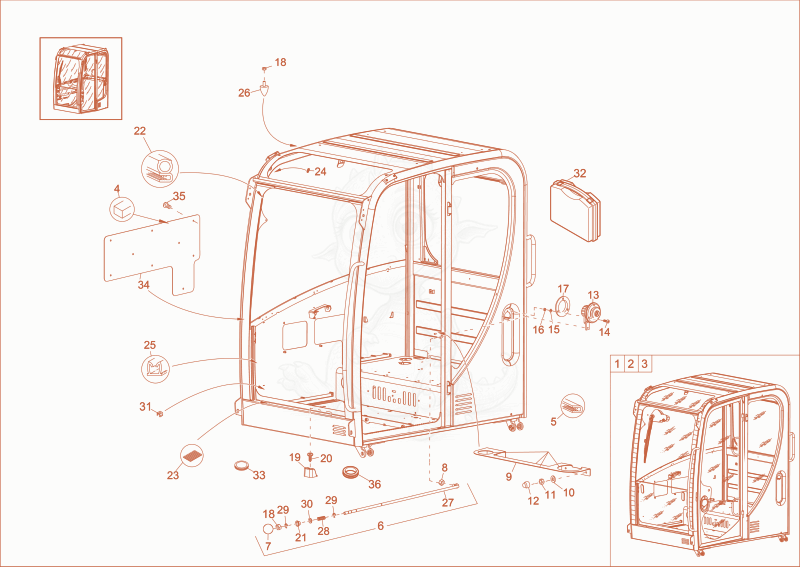

EW100 CABIN FRAME 1 Diagram

Exploded parts diagram of the CABIN FRAME 1 of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000295240
    $22,632.65
    Cabin 1000295240×1
  • 21000345860
    $14,347.58
    cabin - 1000345860×1
  • 31000441658
    $33,823.65
    CABIN - 1000441658×1
  • 41000124789
    $8.33
    Tesamol - 1000124789×2.1
  • 51000097928
    $4.57
    edge protection - 1000097928×0.9
  • 61000262258
    $308.91
    ANTILOCK ROD - 1000262258×1
  • 71000124794
    $26.95
    ball head - 1000124794×1
  • 81000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 91000248762
    $145.87
    Bottleholder 1000248762×1
  • 101000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×3
  • 111000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
  • 121000073525
    $1.49
    cover cap - 1000073525×3
  • 131000124796
    $122.14
    door fastener - 1000124796×1
  • 141000124798
    $2.61
    ovalhead screw - 1000124798×3
  • 151000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×3
  • 161000085587
    $0.03
    HEXAGON NUT - 1000085587×3
  • 171000124797
    $11.44
    rubber disc - 1000124797×1
  • 181000015379Not stocked
    hexagon nut×1
  • 191000066203Not stocked
    clamp shoe×2
  • 201000015386Not stocked
    ovalhead screw×4
  • 211000251804
    $19.86
    mounting - 1000251804×1
  • 221000153158
    $48.82
    PROFILE - 1000153158×3.5
  • 231000097235
    $42.45
    seal strap - 1000097235×0.8
  • 241000152959
    $2.95
    thread pin - 1000152959×2
  • 251000097236
    $49.36
    slide window seal - 1000097236×1
  • 261000241699
    $27.74
    rubber buffer - 1000241699×2
  • 271000262257
    $91.03
    antilock rod - 1000262257×1
  • 281000251799
    $18.78
    pressure spring - 1000251799×1
  • 291000049454Not stocked
    lock washer×2
  • 301000015448Not stocked
    washer×1
  • 311000251957
    $1.19
    cage nut - 1000251957×1
  • 321000110218
    $89.96
    documents box - 1000110218×1
  • 331000066256Not stocked
    sleeve×1
  • 341000399797Not stocked
    cover×1
  • 351000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×7
  • 361000266721
    $7.13
    rubber sleeve 29/35/40-4 - 1000266721×1
