EW100

EW100 RELAY BOX (OPTION) Diagram

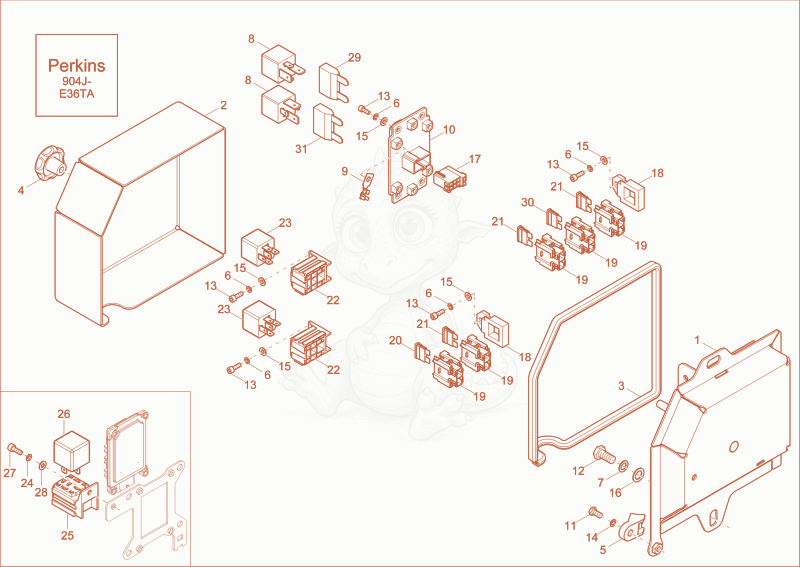

Exploded parts diagram of the RELAY BOX (OPTION) of a Wacker Neuson EW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000434455
    $190.34
    bracket - 1000434455×1
  • 21000447453
    $143.36
    cover - 1000447453×1
  • 31000097928
    $4.57
    edge protection - 1000097928×0.8
  • 41000015429Not stocked
    starhandle nut×1
  • 51000398401Not stocked
    sockets×1
  • 61000082612
    $0.65
    lock washer - 1000082612×8
  • 71000015438Not stocked
    lock washer×2
  • 81000353649Not stocked
    relay×2
  • 91000101271
    $1.91
    cable lug - 1000101271×6
  • 101000284386
    $250.33
    platine - 1000284386×1
  • 111000018400Not stocked
    hex screw×1
  • 121000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 131000082428
    $0.68
    socket head screw M4x12 8.8 A2C DIN912 - 1000082428×8
  • 141000015430Not stocked
    u-washer×1
  • 151000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×8
  • 161000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 171000099201
    $2.87
    bushing housing - 1000099201×1
  • 181000027144Not stocked
    fixing bracket×2
  • 191000027193
    $3.31
    Bracket - 1000027193×6
  • 201000085685
    $0.70
    Fuse - 1000085685×1
  • 211000084949
    $0.42
    FUSE - 1000084949×3
  • 221000026977
    $4.33
    SOCKETS - 1000026977×2
  • 231000353650Not stocked
    relay×2
  • 241000082612
    $0.65
    lock washer - 1000082612×1
  • 251000026977
    $4.33
    SOCKETS - 1000026977×1
  • 261000423239Not stocked
    Micro SPS CAN E14 LOAD×1
  • 271000082428
    $0.68
    socket head screw M4x12 8.8 A2C DIN912 - 1000082428×1
  • 281000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×1
  • 291000015298
    $3.25
    FUSE - 1000015298×1
  • 301000085682
    $0.43
    fuse - 1000085682×1
  • 311000098668
    $9.17
    FUSE - 1000098668×1
