Excavator 38Z3

38Z3 chassis Diagram

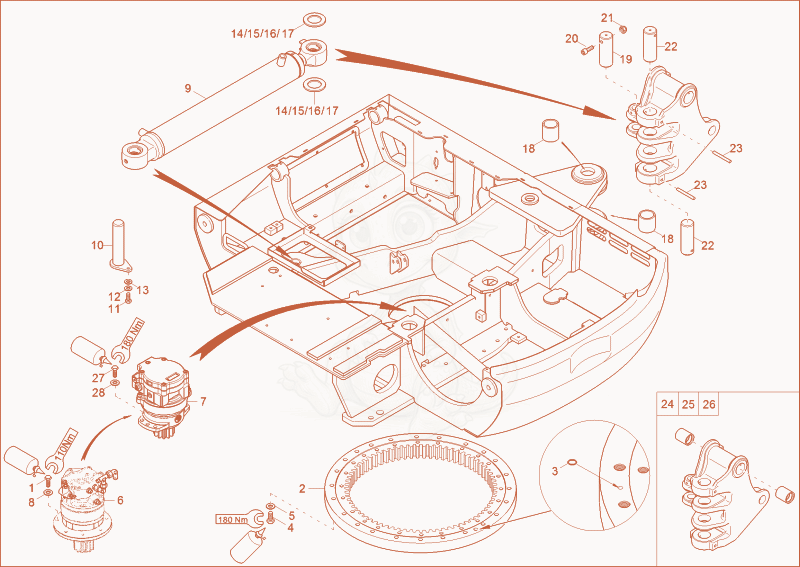

Exploded parts diagram of the chassis of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015381Not stocked
    hex screw×10
  • 21000070670Not stocked
    slewing ring×1
  • 31000095054
    $1.38
    O-RING - 1000095054×1
  • 41000082301
    $2.01
    HEX SCREW - 1000082301×24
  • 51000082635
    $0.78
    WASHER - 1000082635×24
  • 61000070864Not stocked
    swivel drive×1
  • 71000125875
    $8,901.66
    Swiveldrive 1000125875×1
  • 81000015450Not stocked
    northlock disc×10
  • 91000130068
    $2,344.24
    BOOM OFFSET CYLINDER - 1000130068×1
  • 101000070635
    $107.68
    PIN - 1000070635×1
  • 111000015343Not stocked
    hex screw×1
  • 121000015437Not stocked
    lock washer×1
  • 131000015431Not stocked
    washer×1
  • 141000154275
    $2.38
    SHIM - 1000154275×1
  • 151000154276
    $2.11
    SHIM - 1000154276×1
  • 161000154278
    $2.53
    SHIM - 1000154278×1
  • 171000154280
    $2.84
    SHIM - 1000154280×1
  • 181000139603
    $68.61
    STEEL BUSHING - 1000139603×2
  • 191000139679
    $67.52
    Pin 1000139679×1
  • 201000085467
    $0.98
    cheese head screw - 1000085467×1
  • 211000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 221000296763
    $66.48
    Pin 1000296763×2
  • 231000110018
    $11.61
    cotter pin - 1000110018×2
  • 241000183123
    $2,965.58
    Swivelconsolepremounted 1000183123×1
  • 251000183124
    $4,151.30
    swivel console premounted - 1000183124×1
  • 261000183125
    $2,965.58
    swivel console premounted - 1000183125×1
  • 271000020189Not stocked
    cheese head screw×6
  • 281000015453Not stocked
    northlock disc×6
