Excavator 38Z3

38Z3 CABIN FRAME Diagram

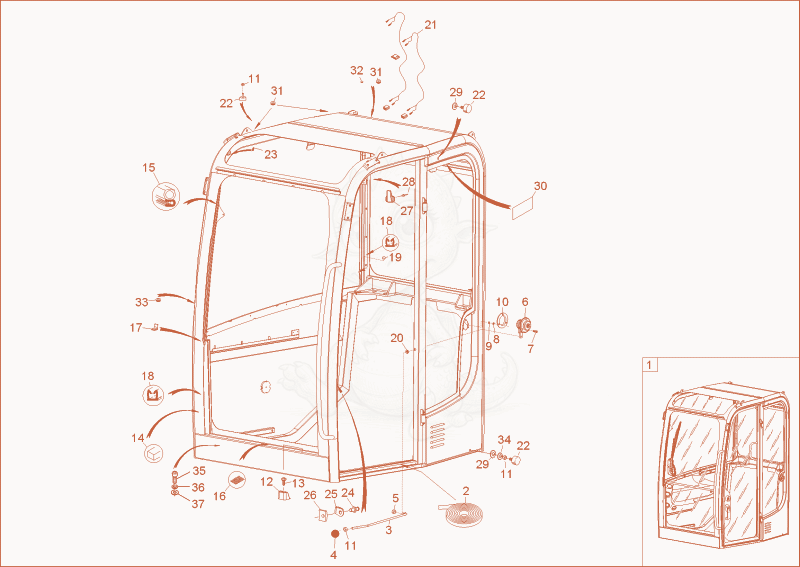

Exploded parts diagram of the CABIN FRAME of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000129583
    $7,585.87
    Cabin 1000129583×1
  • 21000126584
    $26.83
    STRIP - 1000126584×0.7
  • 31000153152
    $217.46
    antilock rod - 1000153152×1
  • 41000124794
    $26.95
    ball head - 1000124794×1
  • DIN985-M8-8-A2C - 1000015416×1
  • 61000124796
    $122.14
    door fastener - 1000124796×1
  • ovalhead screw - 1000124798×3
  • Washer M5,3-DIN134 - 1000094967×3
  • HEXAGON NUT - 1000085587×3
  • 101000124797
    $11.44
    rubber disc - 1000124797×1
  • 111000049046Not stocked
    hexagon nut×4
  • 121000066203Not stocked
    clamp shoe×2
  • 131000085732Not stocked
    ovalhead screw×4
  • 141000181141
    $23.27
    RUBBER FOAM - 1000181141×1.9
  • 151000153158
    $48.82
    PROFILE - 1000153158×3.5
  • 161000097235
    $42.45
    seal strap - 1000097235×0.8
  • 171000143222
    $38.18
    CLAMP SHOE - 1000143222×2
  • 181000097236
    $49.36
    slide window seal - 1000097236×1
  • 191000068968Not stocked
    rubber plug×2
  • 201000124806
    $2.56
    RUBBER SLEEVE - 1000124806×1
  • 211000066236Not stocked
    light cable×1
  • 221000068973Not stocked
    rubber buffer×4
  • 231000152959
    $2.95
    thread pin - 1000152959×2
  • 241000004271Not stocked
    catch bolt×1
  • 251000075584
    $3.16
    BRACKET - 1000075584×1
  • 261000068933Not stocked
    thread plate×1
  • 271000124822
    $19.56
    cloth hook - 1000124822×1
  • 281000082699
    $0.75
    BLIND RIVET - 1000082699×1
  • 291000004289Not stocked
    rubber disc×2
  • 301000135229
    $89.77
    sticker front window - 1000135229×1
  • 311000075523
    $2.92
    blind plug - 1000075523×3
  • 321000068932Not stocked
    blind plug×2
  • 331000066256Not stocked
    sleeve×4
  • 341000012879Not stocked
    quad ring×1
  • 351000022173Not stocked
    cheese head screw×4
  • 361000271073
    $1.22
    LOCK WASHER - 1000271073×4
  • 371000085610
    $0.43
    WASHER - 1000085610×4
