Excavator 38Z3

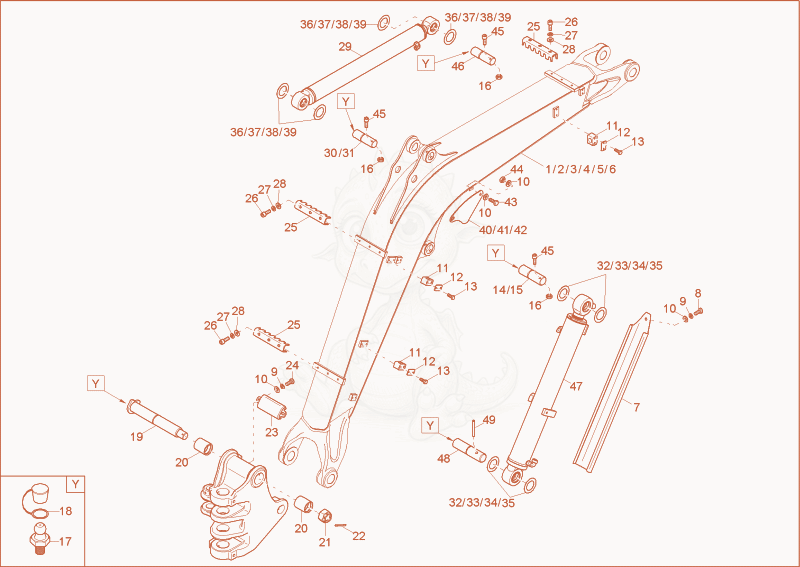

38Z3 lift arm Diagram

Exploded parts diagram of the lift arm of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000155002Not stocked
    lift arm×1
  • 21000178515
    $9,020.72
    lifting arm - 1000178515×1
  • 31000155003Not stocked
    lift arm×1
  • 41000178520
    $9,216.94
    Liftingarm 1000178520×1
  • 51000181589Not stocked
    lift arm×1
  • 61000178532
    $9,455.04
    Liftingarm 1000178532×1
  • 71000139776
    $85.23
    Protectingrail 1000139776×1
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 91000015438Not stocked
    lock washer×3
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×11
  • 111000083263
    $1.33
    clamp body - 1000083263×6
  • 121000015623Not stocked
    cover plate×3
  • 131000085310
    $0.78
    hex screw - 1000085310×12
  • 141000139683
    $80.21
    PIN - 1000139683×1
  • 151000175418
    $147.40
    PIN - 1000175418×1
  • 161000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×3
  • 171000015476Not stocked
    grease nipple×5
  • 181000015480Not stocked
    cap grease nipple×5
  • 191000139682
    $338.31
    PIN - 1000139682×1
  • 201000083214
    $23.25
    STEEL BUSHING - 1000083214×2
  • 211000015417
    $12.94
    DIN935-M36-8-A2C - 1000015417×1
  • 221000021603
    $0.88
    COTTERPIN - 1000021603×1
  • 231000139781
    $127.38
    X-1000270903 clamp bar - 1000139781×1
  • 241000015367Not stocked
    hex screw×2
  • 251000139782
    $19.48
    PIPE CLAMP - 1000139782×3
  • 261000085498
    $1.32
    cheese head screw - 1000085498×9
  • 271000015437Not stocked
    lock washer×9
  • 281000015431Not stocked
    washer×9
  • 291000130066Not stocked
    dipper arm cylinder×1
  • 301000139684Not stocked
    pin×1
  • 311000245779
    $131.95
    Pin 1000245779×1
  • 321000139780
    $5.02
    SHIM - 1000139780×1
  • 331000139779
    $2.11
    SHIM - 1000139779×1
  • 341000139778
    $2.45
    shim - 1000139778×1
  • 351000139777
    $2.64
    shim - 1000139777×1
  • 361000154275
    $2.38
    SHIM - 1000154275×1
  • 371000154276
    $2.11
    SHIM - 1000154276×1
  • 381000154278
    $2.53
    SHIM - 1000154278×1
  • 391000154280
    $2.84
    SHIM - 1000154280×1
  • 401000146924
    $16.98
    protection plate - 1000146924×2
  • 411000163307
    $61.52
    Protectionplate 1000163307×2
  • 421000163306
    $37.43
    protection plate - 1000163306×2
  • 431000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 441000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 451000085467
    $0.98
    cheese head screw - 1000085467×3
  • 461000139674
    $64.34
    Pin 1000139674×1
  • 471000130065Not stocked
    boom cylinder×1
  • 481000139677
    $127.38
    X-1000296749 pin - 1000139677×1
  • 491000049781Not stocked
    cotter pin×1
