Excavator 38Z3

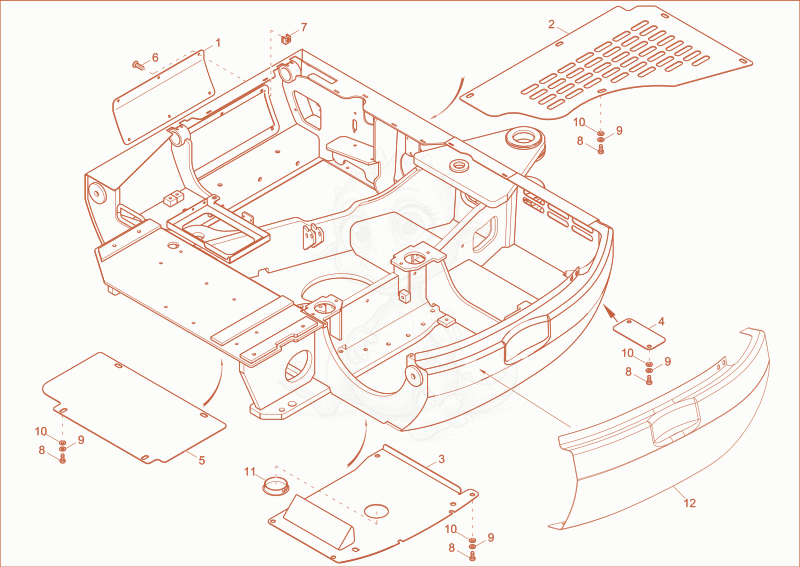

38Z3 chassis cover Diagram

Exploded parts diagram of the chassis cover of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000143636
    $73.98
    Cover 1000143636×1
  • 21000147359
    $353.14
    Cabinecover 1000147359×1
  • 31000183773
    $283.64
    Chassiscover 1000183773×1
  • 41000117711
    $57.88
    cooler cap - 1000117711×1
  • 51000143635
    $149.99
    Exhaustcover 1000143635×1
  • 61000015358Not stocked
    countersunk screw×6
  • 71000094951
    $0.90
    CAGE NUT - 1000094951×6
  • 81000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×17
  • 91000015438Not stocked
    lock washer×17
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×17
  • 111000153999
    $81.37
    PLUG - 1000153999×1
  • 121000307850
    $696.39
    plate - 1000307850×1
