Excavator 38Z3

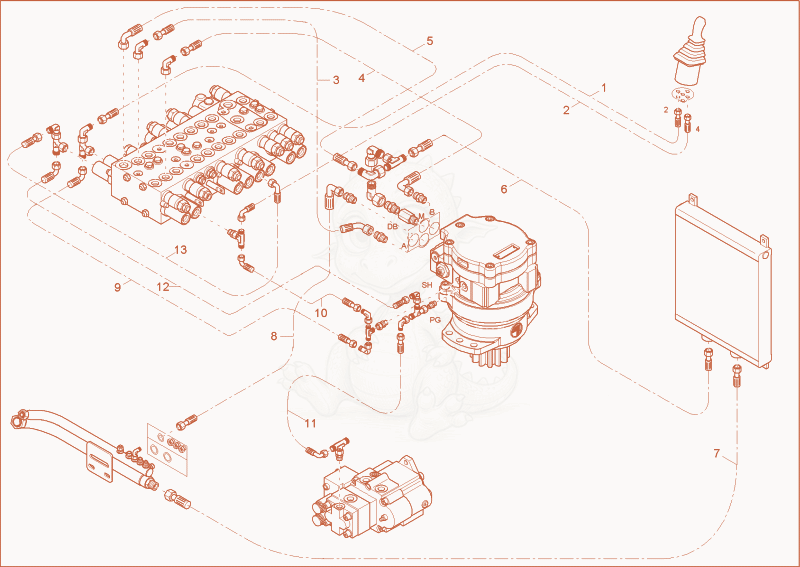

38Z3 TURNTABLE DRIVE UNIT INSTALLATION Diagram

Exploded parts diagram of the TURNTABLE DRIVE UNIT INSTALLATION of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000077948
    $15.95
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1650 0 - 1000077948×1
  • 21000077949
    $16.98
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1900 0 - 1000077949×1
  • 31000052249Not stocked
    Hose×1
  • 41000146534
    $36.10
    SLHYDR 2SC 10 PN12 45 PN12 0 L450,0 0 - 1000146534×1
  • 51000146488
    $48.19
    SLHYDR 1SC 16 PN18 90 PN18 0 L520,0 0 - 1000146488×1
  • 61000146489Not stocked
    Hose×1
  • 71000146468Not stocked
    Hose×1
  • 81000016722Not stocked
    Hose×1
  • 91000076538
    $13.51
    SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000076538×1
  • 101000117922
    $22.31
    SLHYDR 1SCP6,0PN8 0 PN8 90 L500,0 0 - 1000117922×1
  • 111000146505
    $54.68
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2550 0 - 1000146505×1
  • 121000021499Not stocked
    Hose×1
  • 131000076307
    $14.51
    SLHYDR 1SCP6,0PN8 0 PN8 90 L500,0 0 - 1000076307×1
