Excavator 38Z3

38Z3 seat console Diagram

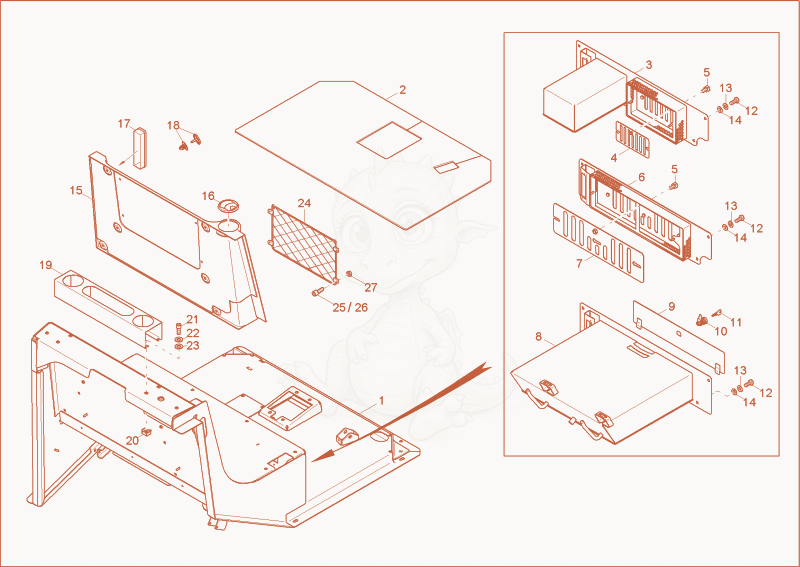

Exploded parts diagram of the seat console of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000147361
    $2,691.23
    Seatconsole 1000147361×1
  • 21000144470
    $153.98
    Footmat 1000144470×1
  • 31000147718
    $291.59
    AIR INTAKE - 1000147718×1
  • 41000146280
    $46.86
    perfored plate - 1000146280×1
  • 51000061271Not stocked
    grooved screw×1
  • 61000147713
    $259.51
    AIR INTAKE - 1000147713×1
  • 71000109167
    $69.53
    perfored plate - 1000109167×1
  • 81000150495
    $487.56
    Canopyboard 1000150495×1
  • 91000150494
    $52.40
    COVER - 1000150494×1
  • 101000069463Not stocked
    cylinder lock×1
  • 111000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 121000019136Not stocked
    hex screw×4
  • 131000015437Not stocked
    lock washer×4
  • 141000015431Not stocked
    washer×4
  • 151000142862
    $484.67
    TRIM - 1000142862×1
  • 161000034829Not stocked
    air nozzle×1
  • 171000143323
    $81.43
    air nozzle - 1000143323×1
  • 181000265274
    $2.68
    SPREAD RIVET - 1000265274×6
  • 191000144574
    $90.80
    Board 1000144574×1
  • 201000094953
    $0.75
    Korgmutter M5 3,6-4,5 - 1000094953×4
  • 211000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×4
  • 221000082608
    $0.06
    lock washer - 1000082608×4
  • 231000095342
    $1.22
    washer X-1000092302 - 1000095342×4
  • 241000034772
    $31.66
    NET - 1000034772×1
  • 251000082307
    $0.04
    BOLT M4x30 8.8 A2C-DIN912 - 1000082307×4
  • 261000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×4
  • 271000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×4
