Excavator 38Z3

38Z3 LIFTING BOOM OPERATION Diagram

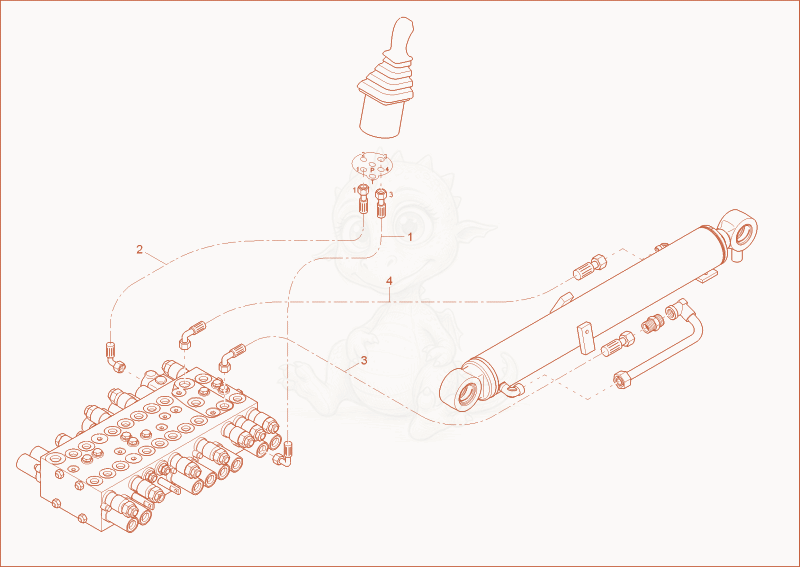

Exploded parts diagram of the LIFTING BOOM OPERATION of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000076293
    $59.24
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2400 0 - 1000076293×1
  • 21000076325
    $64.80
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2800 0 - 1000076325×1
  • 31000146539
    $159.30
    SLHYDR 2SC 13 PN15 90 PN15 0 L1700 S0 - 1000146539×1
  • 41000146543
    $136.10
    SLHYDR 2SC 10 PN12 90 PN12 0 L2000 S0 - 1000146543×1
