Excavator 38Z3

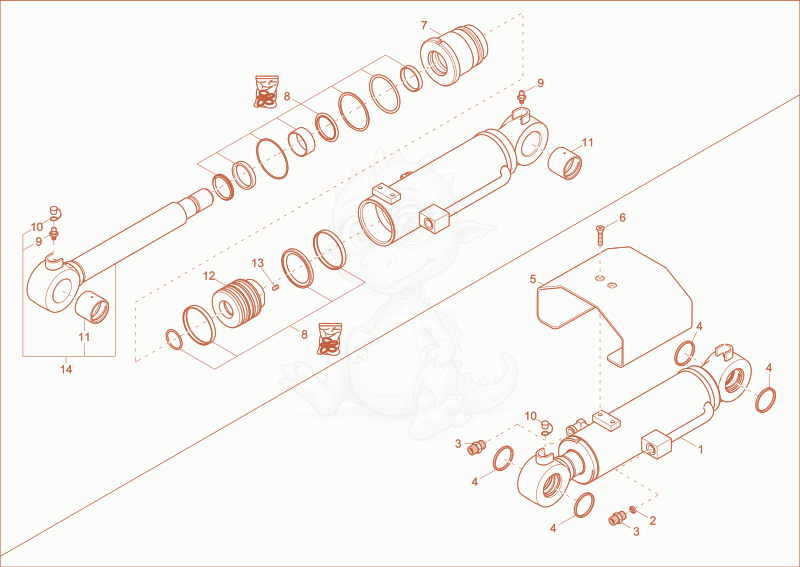

38Z3 blade cylinder Diagram
- 11000367699Not stockedblade cylinder×1
- HOSE BURST PROTECTION - 1000149075×1
- GE10LR1/2EDOMDA3C - 1000082844×2
- 41000015707Not stockedpin gasket×4
- Protectionplate 1000242448×1
- countersunk screw M10x16 - 1000082372×2
- 71000373781Not stockedguide bushing×1
- 81000373784Not stockedcylinder seal kit×1
- grease nipple - 1000072959×2
- 101000015480Not stockedcap grease nipple×2
- 111000015619Not stockedsteel bushing×2
- PISTON - 1000151802×1
- 131000015374Not stockedthread pin×1
- 141000373769Not stockedpiston rod×1
