Excavator 38Z3

38Z3 BUCKET OPERATION Diagram

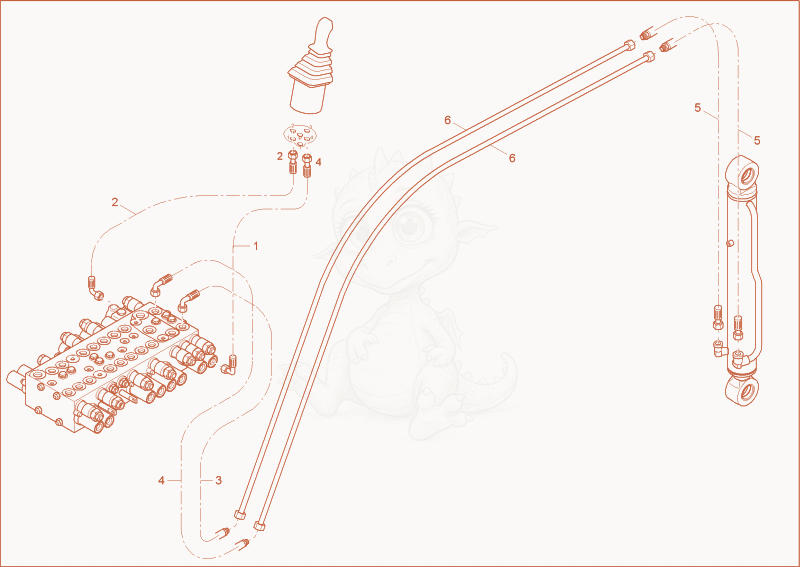

Exploded parts diagram of the BUCKET OPERATION of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000076325
    $64.80
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2800 0 - 1000076325×1
  • 21000076293
    $59.24
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2400 0 - 1000076293×1
  • 31000146537
    $124.85
    SLHYDR 2SC 10 PN12 90 PD15 0 L1800 S0 - 1000146537×1
  • 41000146538
    $136.91
    SLHYDR 2SC 13 PN15 90 PD15 0 L1900 S0 - 1000146538×1
  • 51000146491
    $82.27
    SLHYDR 2SC 10 PN12 0 PD15 0 L1350 0 - 1000146491×2
  • 61000146887
    $87.91
    Hydraulicpipe 1000146887×2
