Excavator 38Z3

38Z3 DIESEL TANK FILLING PUMP (OPTION) Diagram

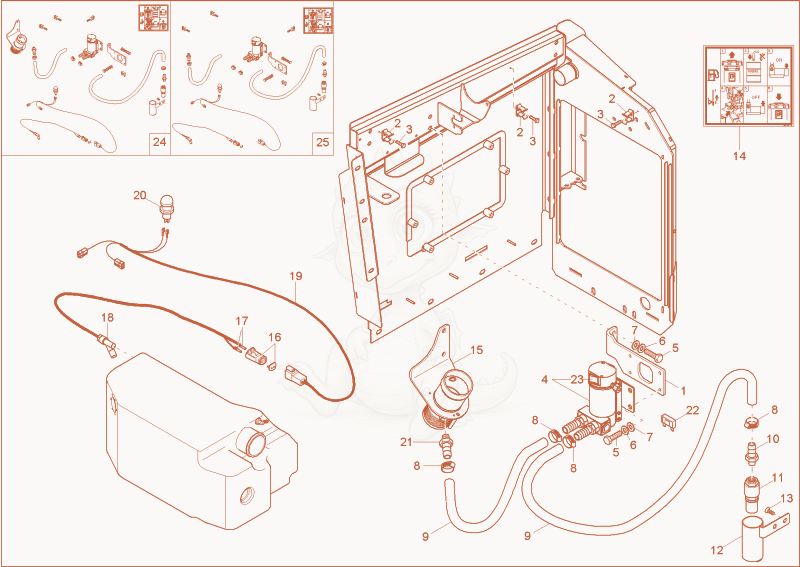

Exploded parts diagram of the DIESEL TANK FILLING PUMP (OPTION) of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000155697Not stocked
    bracket dieselpump×1
  • 21000155817Not stocked
    clip×3
  • 31000085375
    $0.69
    hex screw - 1000085375×3
  • 41000178172
    $795.10
    Fuelpump 1000178172×1
  • 51000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
  • 61000015438Not stocked
    lock washer×6
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×6
  • 81000019590Not stocked
    hose clamp×4
  • 91000117960
    $19.01
    suction hose diesel - 1000117960×2
  • 101000072573
    $31.82
    hose sleeve - 1000072573×1
  • 111000081187
    $75.00
    non return valve - 1000081187×1
  • 121000160710
    $68.28
    BRACKET - 1000160710×1
  • 131000015397Not stocked
    countersunk screw×2
  • 141000130170Not stocked
    sticker×1
  • 151000158465
    $457.70
    Tankfilling 1000158465×1
  • 161000081808
    $16.43
    pin housing - 1000081808×1
  • 171000085034Not stocked
    bushing contact×2
  • 181000128955
    $177.00
    switch level EZ38, EZ53 - 1000128955×1
  • 191000128954
    $99.17
    wiring harness - 1000128954×1
  • 201000015316Not stocked
    warning light×1
  • 211000128010Not stocked
    grease nipple×1
  • 221000085684
    $0.63
    FUSE - 1000085684×1
  • 231000168275
    $46.08
    SWITCH - 1000168275×1
  • 241000160932Not stocked
    retrofit kit fuelfillpump×1
  • 251000167806
    $1,211.61
    retrofit kit fuelfillpump - 1000167806×1
