Excavator 38Z3

38Z3 dipper arm cylinder Diagram

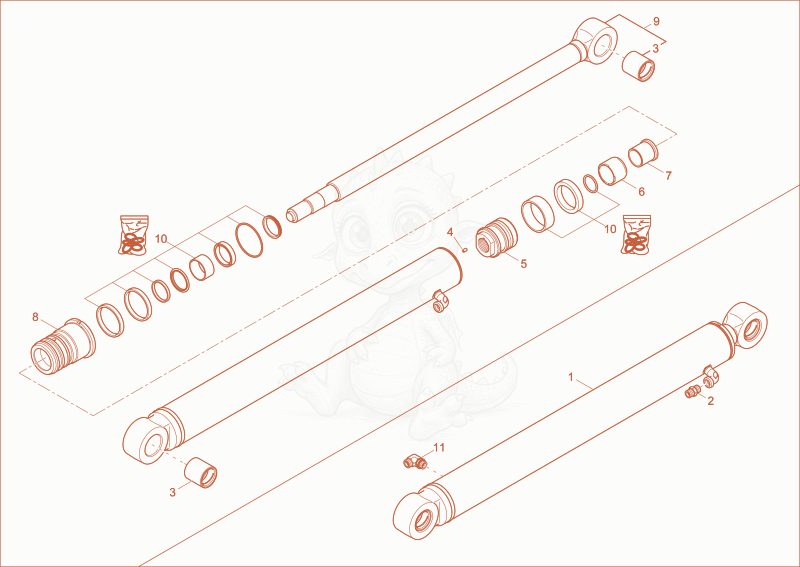

Exploded parts diagram of the dipper arm cylinder of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000367698
    $1,513.01
    Dipperarmcylinder 1000367698×1
  • 21000015494Not stocked
    screw joint×1
  • 31000019750Not stocked
    steel bushing×2
  • 41000015384Not stocked
    thread pin×1
  • 51000071353
    $42.06
    PISTON - 1000071353×1
  • 61000070839Not stocked
    fasten bushing×1
  • 71000070838Not stocked
    bushing shock absorber×1
  • 81000153527
    $105.73
    Guidebushing 1000153527×1
  • 91000373807
    $557.30
    piston rod - 1000373807×1
  • 101000373803Not stocked
    cylinder seal kit×1
  • 111000136641
    $57.88
    WEE15LROMDA3C - 1000136641×1
