Excavator 38Z3

38Z3 SWIVEL CYLINDER OPERATION Diagram

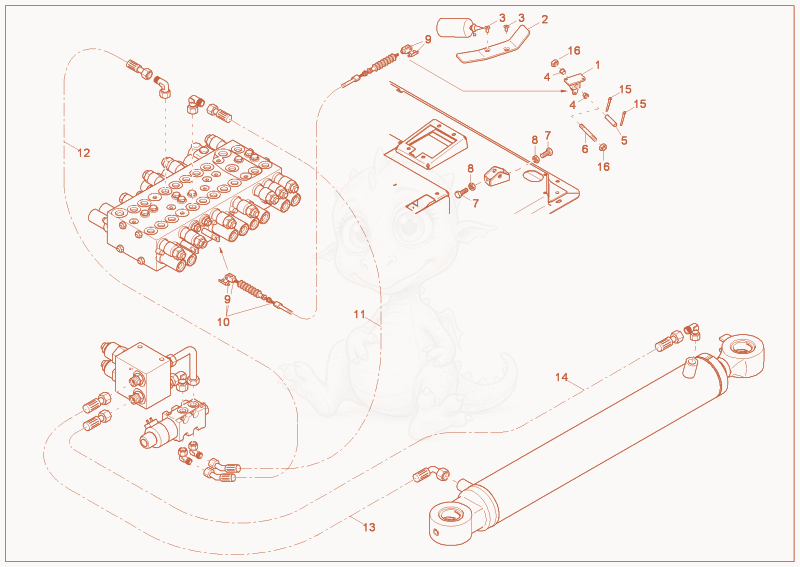

Exploded parts diagram of the SWIVEL CYLINDER OPERATION of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000357374
    $119.58
    LEVER - 1000357374×1
  • 21000152221Not stocked
    step plate×1
  • 31000085531
    $0.80
    countersunk screw - 1000085531×2
  • 41000069438Not stocked
    slide bearing×2
  • 51000147714Not stocked
    pin×1
  • 61000069399Not stocked
    pin add.hydr.pedal×1
  • 71000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 81000015405Not stocked
    hexagon nut×2
  • 91000123993
    $5.83
    fork head - 1000123993×2
  • 101000144499
    $102.61
    Bowden cable - 1000144499×1
  • 111000146535
    $54.26
    SLHYDR 2SC 13 PN15 45 PN15 0 L620,0 0 - 1000146535×1
  • 121000077257
    $35.88
    SLHYDR 2SC 13 PN15 45 PN15 0 L700,0 0 - 1000077257×1
  • 131000076710
    $19.96
    SLHYDR 2SC 8,0PN10 90 PN10 0 L1200 0 - 1000076710×1
  • 141000146536
    $64.61
    SLHYDR 2SC 8,0PN10 0 PN10 0 L1800 0 - 1000146536×1
  • 151000095365
    $0.10
    cotter pin 3,2x20 - 1000095365×2
  • 161000020127Not stocked
    hexagon nut×2
