Excavator 38Z3

38Z3 DIESEL TANK plastic Diagram

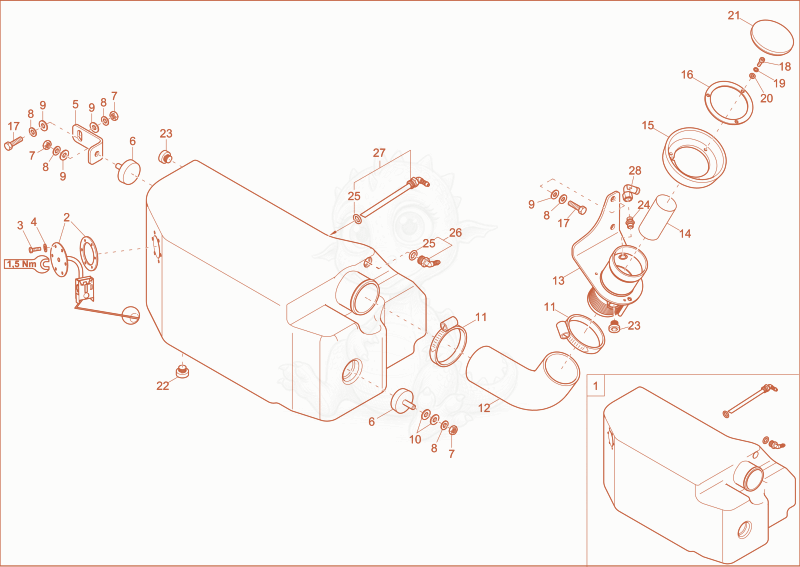

Exploded parts diagram of the DIESEL TANK plastic of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000147652
    $1,188.32
    fuel tank - 1000147652×1
  • 21000249304
    $195.65
    fuel transmitter - 1000249304×1
  • 31000152757
    $1.31
    ovalhead screw - 1000152757×6
  • 41000152756
    $0.95
    SEAL PLATE - 1000152756×6
  • 51000147654
    $33.92
    ANGLE BRACKET - 1000147654×1
  • 61000052658Not stocked
    rubber buffer×2
  • 71000015407Not stocked
    hexagon nut×3
  • 81000015438Not stocked
    lock washer×6
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×5
  • 101000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 111000083322
    $4.17
    hose clamp 87-112mm - 1000083322×2
  • 121000143468
    $215.59
    diesel refill hose - 1000143468×1
  • 131000158465
    $457.70
    Tankfilling 1000158465×1
  • 141000267866
    $20.53
    FILING STRAINER - 1000267866×1
  • 151000068721Not stocked
    diesel overflow×1
  • 161000068722Not stocked
    fastenring×1
  • 171000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×3
  • 181000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×3
  • 191000015436Not stocked
    lock washer×3
  • 201000015430Not stocked
    u-washer×3
  • 211000068814Not stocked
    filler cap×1
  • 221000020797Not stocked
    screw joint×1
  • 231000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×2
  • 241000015488Not stocked
    screw joint×1
  • 251000168416
    $1.73
    O-RING - 1000168416×2
  • 261000168397
    $7.13
    angle cut piece - 1000168397×1
  • 271000168421
    $67.07
    suction pipe - 1000168421×1
  • 281000000542
    $11.08
    EW08LOMD - 1000000542×1
