Excavator 38Z3

38Z3 CONTROL VALVE 1 (OPTION) Diagram

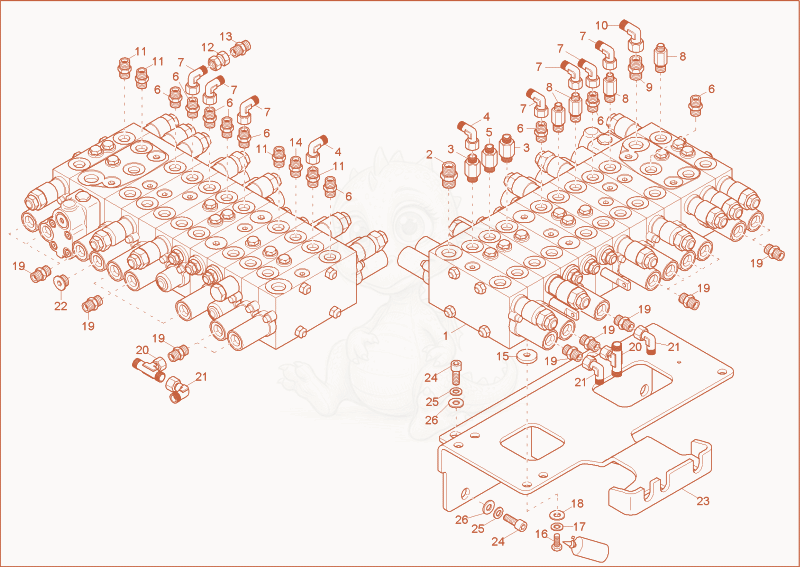

Exploded parts diagram of the CONTROL VALVE 1 (OPTION) of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000147374
    $7,140.72
    Valveblock 1000147374×1
  • 21000083048
    $6.80
    GE18LR1/2OROMDA3C - 1000083048×1
  • 31000069309Not stocked
    connection piece×2
  • 41000000573Not stocked
    screw joint×2
  • 51000069310Not stocked
    connection piece×1
  • 61000083023
    $8.35
    GE15LR3/8OROMDA3C - 1000083023×9
  • 71000015512Not stocked
    screw joint×7
  • 81000069387Not stocked
    extension×4
  • 91000082976
    $21.23
    GE22LR1/2OROMDA3C - 1000082976×1
  • 101000020261
    $17.85
    EW22LOMD - 1000020261×1
  • 111000082969
    $4.07
    GE12LR3/8OROMDA3C - 1000082969×4
  • 121000020801
    $12.87
    GZ15LA3C - 1000020801×1
  • 131000015547
    $2.98
    G15LA3CX - 1000015547×1
  • 141000148935
    $124.48
    GE10LR3/8ORA3C DBHG: 2,0MM - 1000148935×1
  • 151000069388Not stocked
    cork disc×3
  • 161000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×3
  • 171000015438Not stocked
    lock washer×3
  • 181000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 191000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×15
  • 201000015518
    $8.71
    ET08LOMDA3C - 1000015518×3
  • 211000000542
    $11.08
    EW08LOMD - 1000000542×4
  • 221000129251
    $31.11
    VSTI1/4ORA3C - 1000129251×1
  • 231000144106
    $309.77
    BRACKET CONTROL VALVE - 1000144106×1
  • 241000085510
    $1.03
    allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×5
  • 251000082609
    $0.73
    lock washer - 1000082609×5
  • 261000049219Not stocked
    washer×5
