Excavator 38Z3

38Z3 fuel system Diagram

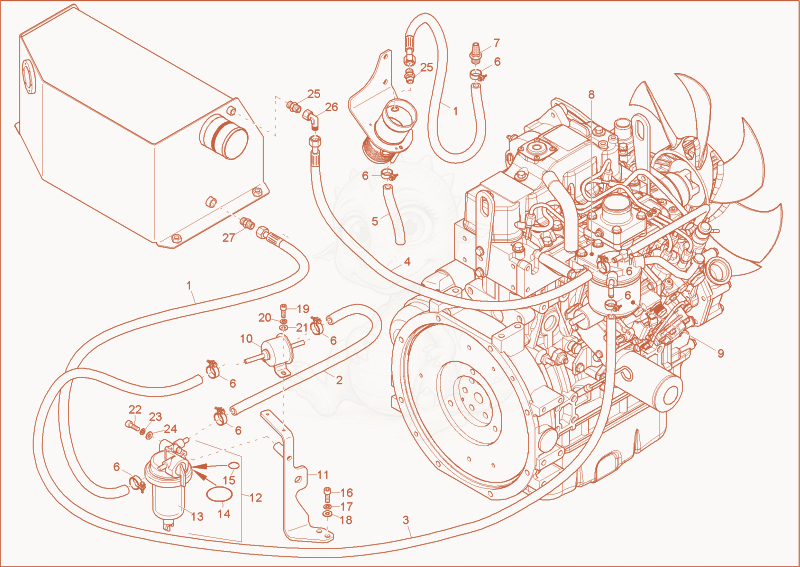

Exploded parts diagram of the fuel system of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000149998Not stocked
    fuel line×2
  • 21000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.27
  • 31000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.55
  • 41000149999Not stocked
    fuel line×1
  • 51000147636
    $4.88
    SCDIES 8,0 - 1000147636×0.7
  • 61000124859
    $5.91
    hose clamp - 1000124859×10
  • 71000069386Not stocked
    sintermetal filter×1
  • 81000113360
    $189.34
    bracket dieselfilter - 1000113360×1
  • 91000379275Not stocked
    fuel filter×1
  • 101000093894
    $299.72
    FUEL PUMP - 1000093894×1
  • 111000147715
    $18.37
    BRACKET - 1000147715×1
  • 121000078938
    $52.73
    Water Seperator - 1000078938×1
  • 131000106892
    $30.76
    water seperator element - 1000106892×1
  • 141000069998Not stocked
    gasket filter housing×1
  • 151000064543
    $1.72
    O-RING - 1000064543×1
  • 161000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×2
  • 171000015438Not stocked
    lock washer×2
  • 181000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 191000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 201000015436Not stocked
    lock washer×2
  • 211000015430Not stocked
    u-washer×2
  • 221000085466
    $0.90
    cheese head screw - 1000085466×1
  • 231000015437Not stocked
    lock washer×1
  • 241000015431Not stocked
    washer×1
  • 251000015488Not stocked
    screw joint×2
  • 261000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 271000015489Not stocked
    screw joint×1
