Excavator 38Z3

38Z3 ADDITIONAL PARTS OPTION AIR-CONDITIONING Diagram

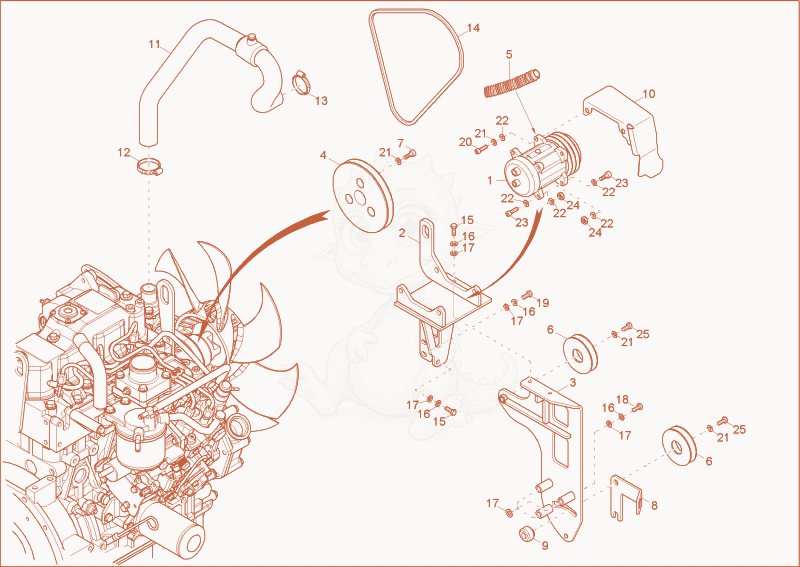

Exploded parts diagram of the ADDITIONAL PARTS OPTION AIR-CONDITIONING of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000106938
    $693.80
    compressor aircondition X-1000358788 - 1000106938×1
  • 21000109404
    $87.35
    Console Aircond.Compressor 1000109404×1
  • 31000167735
    $83.20
    COMPRESSOR SUPP. - 1000167735×1
  • 41000109405
    $98.63
    Pulley 1000109405×1
  • 51000097882
    $18.45
    cable hose - 1000097882×0.35
  • 61000166533
    $95.84
    belt pulley - 1000166533×2
  • 71000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×3
  • 81000116653Not stocked
    clamping strap×1
  • 91000021727Not stocked
    slide nut×1
  • 101000383445Not stocked
    cover×1
  • 111000112319
    $121.08
    HOSE-COOLANT,W/AC - 1000112319×1
  • 121000067377Not stocked
    hose clamp×1
  • 131000124441
    $3.53
    CLAMP - 1000124441×1
  • 141000243214
    $46.83
    V-BELT - 1000243214×1
  • 151000015343Not stocked
    hex screw×3
  • 161000015437Not stocked
    lock washer×8
  • 171000015431Not stocked
    washer×11
  • 181000085317
    $0.97
    hex screw M8x55-8.8 A2C-DIN931 - 1000085317×3
  • 191000019136Not stocked
    hex screw×2
  • 201000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
  • 211000015438Not stocked
    lock washer×7
  • 221000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×10
  • 231000085469
    $1.00
    cheese head screw - 1000085469×4
  • 241000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 251000085413
    $1.20
    hex screw - 1000085413×2
