Excavator 38Z3

38Z3 TANK LINES Diagram

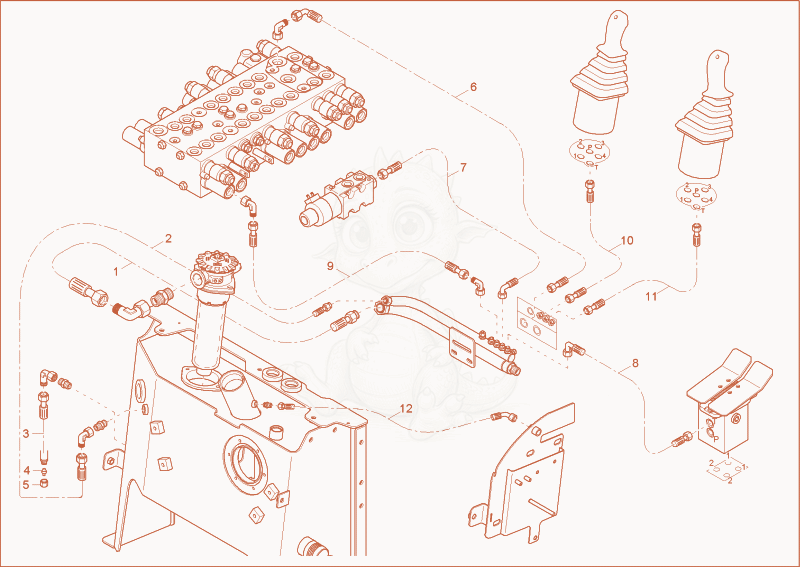

Exploded parts diagram of the TANK LINES of a Wacker Neuson 38Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000165513
    $91.41
    SLHYDR 1SC 25 PN28 0 PD28 0 L800,0 0 - 1000165513×1
  • 21000150000
    $15.19
    SLHYDR 1SC 13 PN15 0 PD15 0 L520,0 0 - 1000150000×1
  • 31000146465
    $22.92
    SLHYDR 1SC 10 PN12 0 PD12 0 L600,0 0 - 1000146465×1
  • 41000082796
    $1.85
    VKA12LSA3C - 1000082796×1
  • 51000015482
    $0.85
    M12L ST A3C - 1000015482×1
  • 61000077770Not stocked
    Hose×1
  • 71000076376
    $15.19
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1100 0 - 1000076376×1
  • 81000076336
    $21.03
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2100 0 - 1000076336×1
  • 91000146464
    $50.73
    SLHYDR 1SCP6,0PN8 0 PN8 0 L550,0 0 - 1000146464×1
  • 101000146514
    $35.90
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2300 0 - 1000146514×1
  • 111000076394
    $20.94
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2700 0 - 1000076394×1
  • 121000150664Not stocked
    hose×1
