WN Excavator 9503-2

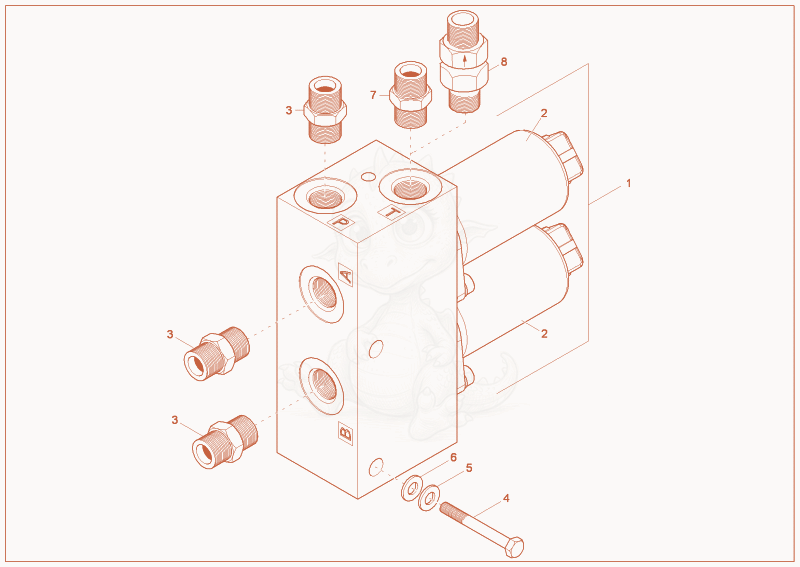

9503 PROPORTIONAL VALVE (OPTION) Diagram

Exploded parts diagram of the PROPORTIONAL VALVE (OPTION) of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000153115
    $576.74
    proportional valve - 1000153115×1
  • 21000263498
    $248.02
    VALVE - 1000263498×2
  • 31000015488Not stocked
    screw joint×3
  • 41000085386
    $0.72
    hex screw - 1000085386×2
  • 51000015436Not stocked
    lock washer×2
  • 61000015430Not stocked
    u-washer×2
  • 71000015488Not stocked
    screw joint×1
  • 81000189661
    $47.16
    non return valve - 1000189661×1
