WN Excavator 9503-2

9503 wiring harness roof Diagram

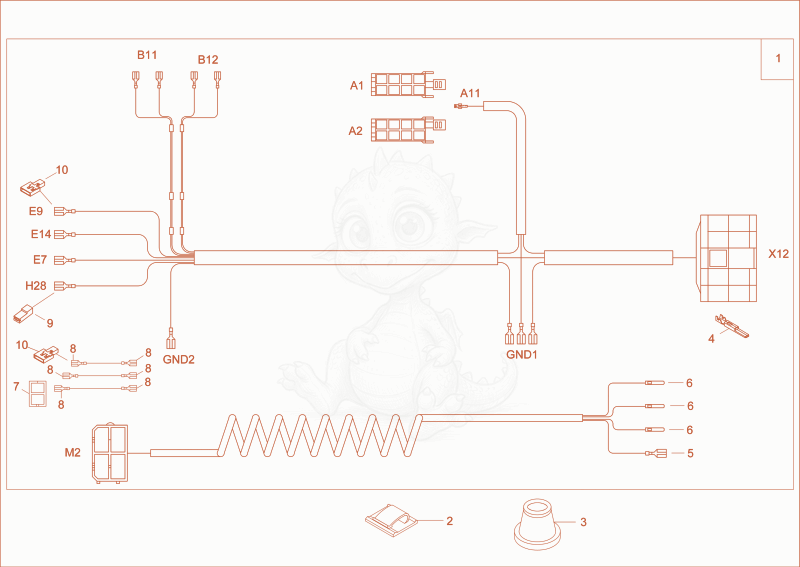

Exploded parts diagram of the wiring harness roof of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000241052
    $495.19
    wiring harness roof - 1000241052×1
  • 21000124830
    $6.29
    CABLE CLIP - 1000124830×1
  • 31000124843
    $2.59
    cable sleeve - 1000124843×1
  • 41000000483Not stocked
    plug×9
  • 51000095370
    $0.66
    plug sleeve - 1000095370×1
  • 61000000483Not stocked
    plug×3
  • 71000095336Not stocked
    plug sleeve housing×1
  • 81000095371Not stocked
    plug sleeve×6
  • 91000027435Not stocked
    insulating sleeve×1
  • 101000094930
    $13.00
    plug connection - 1000094930×2
  • A11000104903
    $4.90
    CONTACT-HOUSING - 1000104903×2
  • A111000027179Not stocked
    timer contact×1
  • A21000104902
    $18.69
    CONTACT-HOUSING - 1000104902×1
  • B111000106792
    $0.44
    plug sleeve - 1000106792×2
  • B121000095369
    $2.07
    plug sleeve - 1000095369×2
  • E141000095371Not stocked
    plug sleeve×1
  • E71000095371Not stocked
    plug sleeve×1
  • E91000095371Not stocked
    plug sleeve×1
  • GND11000095370
    $0.66
    plug sleeve - 1000095370×1
  • GND21000095371Not stocked
    plug sleeve×1
  • H281000095371Not stocked
    plug sleeve×1
  • M21000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • X121000101653
    $6.73
    plug sleeve housing - 1000101653×1
