WN Excavator 9503-2

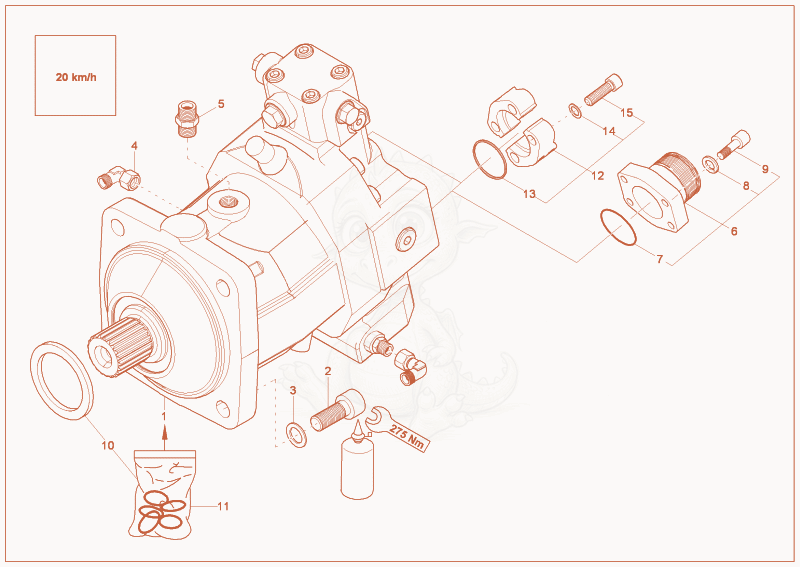

9503 VARIABLE DISPLACEMENT MOTOR Diagram

Exploded parts diagram of the VARIABLE DISPLACEMENT MOTOR of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000156002
    $17,488.94
    Hydraulicmotor 1000156002×1
  • 21000015383Not stocked
    cheese head screw×4
  • 31000015451Not stocked
    northlock disc×4
  • 41000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 51000085132
    $3.34
    GE15LM18X1,5EDOMDA3C - 1000085132×1
  • 61000161134
    $250.76
    PFF64/25SOMDA3CM - 1000161134×2
  • 71000020093
    $0.73
    o-ring - 1000020093×2
  • 81000049417
    $2.11
    spring washer - 1000049417×8
  • 91000085511
    $1.23
    cheese head screw M12x45 10.9Dacro500DIN - 1000085511×8
  • 101000088826
    $85.63
    shaft seal - 1000088826×1
  • 111000160237
    $607.90
    seal kit - 1000160237×1
  • 121000065279
    $40.15
    FLANGE - 1000065279×2
  • 131000171851
    $43.49
    O-ring - 1000171851×2
  • 141000082609
    $0.73
    lock washer - 1000082609×8
  • 151000022173Not stocked
    cheese head screw×8
