WN Excavator 9503-2

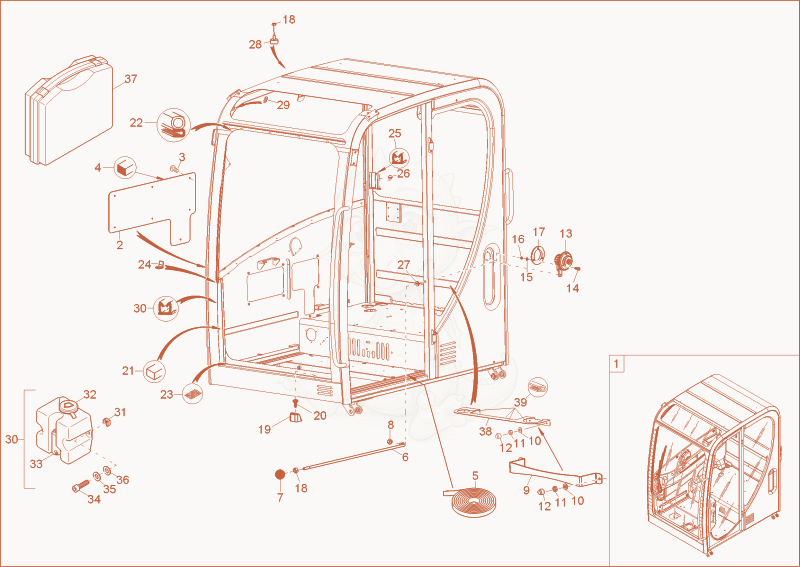

9503 CABIN FRAME 1 Diagram
- 11000155785Not stockedx-1000183368 CABIN×1
- Sidecover 1000124788×1
- screw M6x12 ISO7380-2 - 1000165459×7
- Tesamol - 1000124789×2.1
- STRIP - 1000126584×1.4
- antilock rod - 1000124793×1
- ball head - 1000124794×1
- DIN985-M8-8-A2C - 1000015416×1
- BRACKET - 1000124795×1
- washer M6,4-DIN134 - 1000094966×5
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×5
- cover cap - 1000073525×5
- door fastener - 1000124796×1
- ovalhead screw - 1000124798×3
- Washer M5,3-DIN134 - 1000094967×3
- HEXAGON NUT - 1000085587×3
- rubber disc - 1000124797×1
- 181000015379Not stockedhexagon nut×1
- 191000066203Not stockedclamp shoe×2
- 201000015386Not stockedovalhead screw×4
- RUBBER FOAM - 1000181141×1.9
- PROFILE - 1000153158×3.5
- seal strap - 1000097235×0.8
- CLAMP SHOE - 1000143222×2
- slide window seal - 1000097236×1
- 261000068968Not stockedrubber plug×2
- RUBBER SLEEVE - 1000124806×1
- rubber buffer - 1000153159×2
- thread pin - 1000152959×2
- wash tank Incl. pump - 1000110420×1
- 311000015426Not stockedcage nut×2
- locking cap - 1000125145×1
- pump washtank - 1000125144×1
- allen screw M5x16-8.8 A2C DIN912 - 1000085451×2
- lock washer - 1000082608×2
- washer X-1000092302 - 1000095342×2
- documents box - 1000110218×1
- bottle holder - 1000179718×1
- edge protection - 1000097928×0.9
