WN Excavator 9503-2

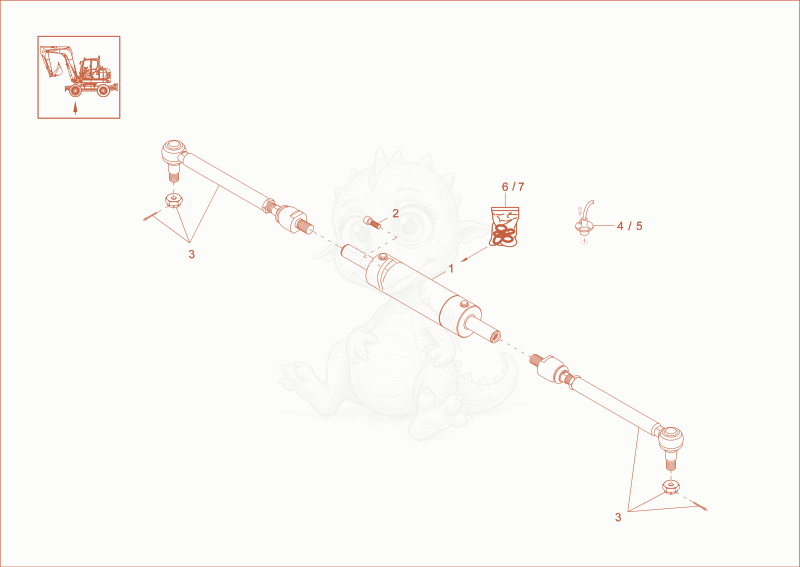

9503 steering cylinder Diagram

Exploded parts diagram of the steering cylinder of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000311480Not stocked
    cylinder×1
  • 21000150567
    $2.15
    socket cap screw - 1000150567×4
  • 31000170060
    $491.82
    Track rod - 1000170060×2
  • 41000170061
    $421.49
    Sensor - 1000170061×1
  • 51000311501
    $854.83
    Sensor - 1000311501×1
  • 61000150569
    $96.34
    seal kit - 1000150569×1
  • 71000312514Not stocked
    seal kit×1
