WN Excavator 9503-2

9503 Mudguard (Option) Diagram

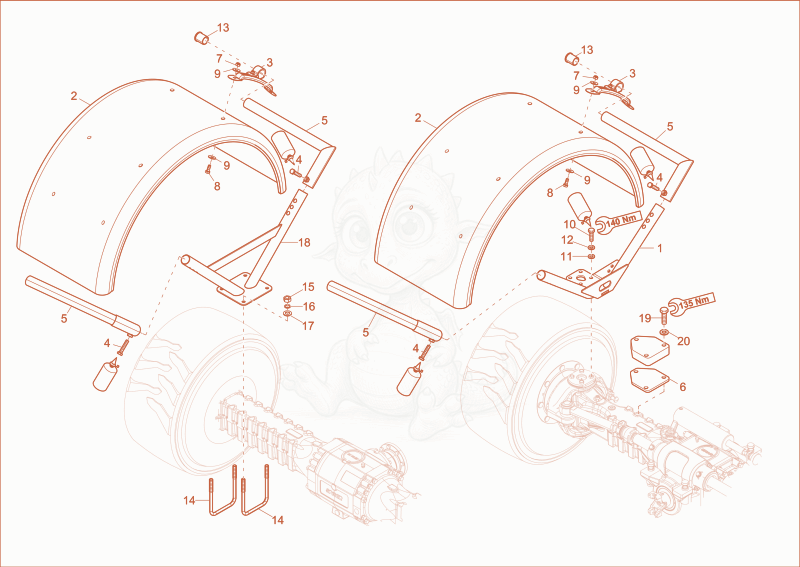

Exploded parts diagram of the Mudguard (Option) of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000239944
    $227.95
    Bracket 1000239944×2
  • 21000239941
    $291.79
    Wheelcover 1000239941×4
  • 31000367249
    $43.52
    bracket - 1000367249×16
  • 41000085421
    $1.08
    hex screw - 1000085421×8
  • 51000239943
    $134.96
    Bracket 1000239943×8
  • 61000240063
    $50.25
    Spacerplate 1000240063×2
  • 71000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×32
  • 81000013008Not stocked
    hex screw×32
  • 91000013027Not stocked
    washer×64
  • 101000048076Not stocked
    hex screw×8
  • 111000049219Not stocked
    washer×8
  • 121000082609
    $0.73
    lock washer - 1000082609×8
  • 131000351353Not stocked
    clutch disc plug×8
  • 141000239946
    $38.45
    holder - 1000239946×4
  • 151000015415Not stocked
    hexagon nut×8
  • 161000082609
    $0.73
    lock washer - 1000082609×8
  • 171000049219Not stocked
    washer×8
  • 181000239945
    $242.74
    Bracket 1000239945×2
  • 191000047404Not stocked
    hex screw×6
  • 201000019126Not stocked
    u-washer×6
