WN Excavator 9503-2

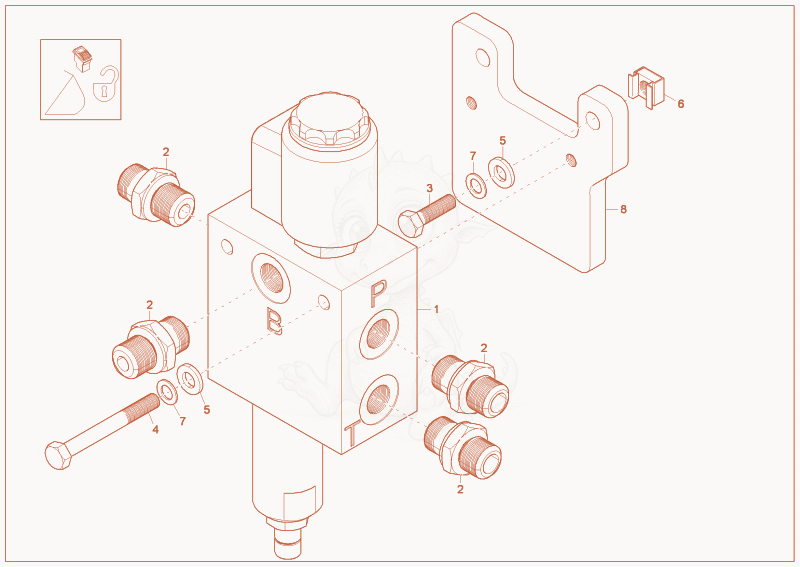

9503 Easy Lock Valve (Option) Diagram

Exploded parts diagram of the Easy Lock Valve (Option) of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000191065
    $809.99
    Easylockvalve 1000191065×1
  • 21000015488Not stocked
    screw joint×4
  • 31000018400Not stocked
    hex screw×2
  • 41000015341Not stocked
    hex screw×2
  • 51000015430Not stocked
    u-washer×4
  • 61000015413Not stocked
    hexagon nut×2
  • 71000015436Not stocked
    lock washer×4
  • 81000187274
    $10.30
    shim - 1000187274×1
