9503 DOZER BLADE rear (OPTION) Diagram

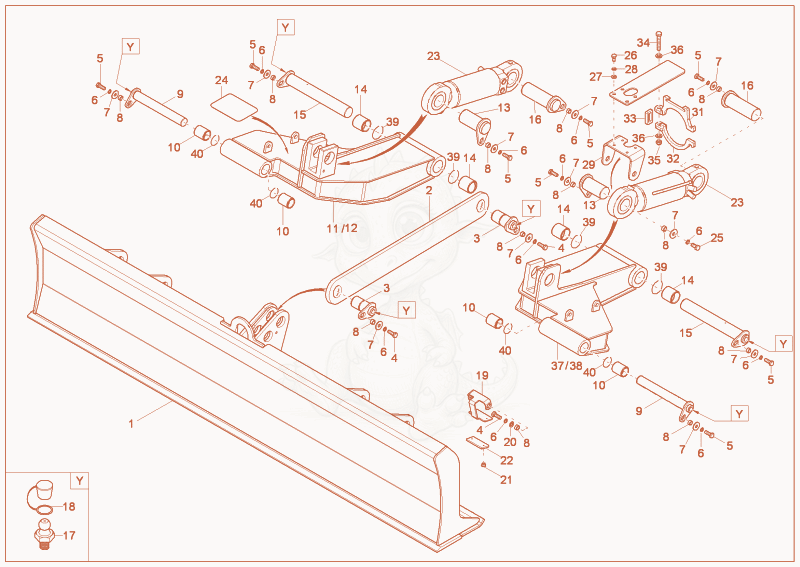

Exploded parts diagram of the DOZER BLADE rear (OPTION) of a Wacker Neuson 9503, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000308704Not stocked
dozer blade×1
21000157142
$338.54
Rod 1000157142×1
31000157077
$88.79
Pin 1000157077×2
41000085418
$9.74
hex screw - 1000085418×6
51000085404
$0.93
hex screw - 1000085404×4
61000082609
$0.73
lock washer - 1000082609×18
71000085613
$0.10
washer - 1000085613×14
81000157155
$4.52
WASHER - 1000157155×18
91000157074
$147.54
Pin 1000157074×2
101000015612Not stocked
steel bushing×4
111000155788
$1,605.32
Stabilizers right - 1000155788×1
121000308705Not stocked
Stabilizers right×1
131000180162
$134.51
PIN - 1000180162×2
141000015604Not stocked
steel bushing×4
151000157151
$188.43
PIN - 1000157151×2
161000157072
$318.88
PIN - 1000157072×2
171000015476Not stocked
grease nipple×6
181000015480Not stocked
cap grease nipple×6
191000157144
$51.62
bracket reflector - 1000157144×2
201000049219Not stocked
washer×4
211000082697
$0.80
blind rivet A3x12 - 1000082697×4
221000004320
$1.60
REFLECTOR - 1000004320×2
231000155784
$7,000.57
Bladecylinder 1000155784×2
241000180128
$92.33
antislide covering - 1000180128×3
251000085418
$9.74
hex screw - 1000085418×4
261000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×8
271000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×8
281000015438Not stocked
lock washer×8
291000179339
$47.39
Joint 1000179339×2
301000339796
$140.75
COVER - 1000339796×2
311000179341
$16.79
clamp body - 1000179341×2
321000179336
$25.07
clamp body - 1000179336×2
331000179905
$4.48
clamp - 1000179905×2
341000085373
$1.51
hex screw - 1000085373×2
351000020127Not stocked
hexagon nut×2
361000049219Not stocked
washer×4
371000155780
$2,748.11
Stabilizers left - 1000155780×1
381000308707Not stocked
Stabilizers left×1
391000015467Not stocked
lock ring×4
401000021601Not stocked
lock ring×4
