WN Excavator 9503-2

9503 chassis Diagram

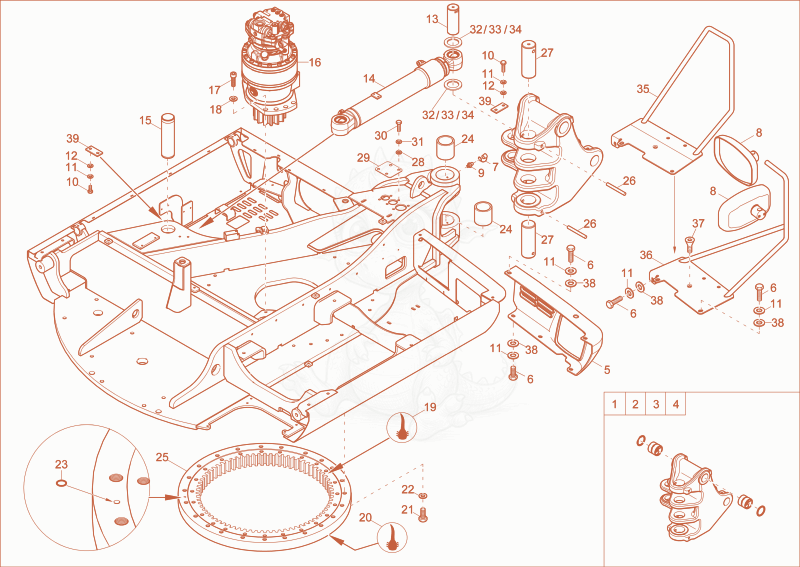

Exploded parts diagram of the chassis of a Wacker Neuson 9503, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000188226
$7,748.95
Swivelconsolepremounted 1000188226×1
21000183117
$3,185.69
swivel console premounted - 1000183117×1
31000183118
$4,778.29
swivel console premounted - 1000183118×1
41000183119
$4,080.58
Swivelconsolepremounted 1000183119×1
51000158312
$678.92
Cover - 1000158312×1
61000015364Not stocked
hex screw×6
71000015480Not stocked
cap grease nipple×2
81000264124
$82.20
mirror - 1000264124×2
91000015476Not stocked
grease nipple×2
101000015348Not stocked
hex screw×2
111000015438Not stocked
lock washer×8
121000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×2
131000167444
$181.18
Pin 1000167444×1
141000444510Not stocked
boom offset cylinder×1
151000117039
$258.86
Pin 1000117039×1
161000109874
$15,312.67
Swiveldrive 1000109874×1
171000015383Not stocked
cheese head screw×8
181000015451Not stocked
northlock disc×8
191000097244
$54.76
gasket slewing gear - 1000097244×2.8
201000097244
$54.76
gasket slewing gear - 1000097244×2.8
211000082284
$2.51
hex screw - 1000082284×30
221000020820
$3.19
WASHER - 1000020820×30
231000095054
$1.38
O-RING - 1000095054×1
241000019027Not stocked
steel bushing×2
251000391491
$7,703.72
slewing ring EZ80, ET90, EW100 - 1000391491×1
261000124475
$35.56
cotter pin - 1000124475×2
271000115090
$125.36
Pin 1000115090×2
281000049219Not stocked
washer×4
291000127933
$75.82
cover plate - 1000127933×1
301000085418
$9.74
hex screw - 1000085418×4
311000082609
$0.73
lock washer - 1000082609×4
321000130087
$2.99
shim - 1000130087×1
331000130086
$3.64
shim - 1000130086×1
341000130085
$4.41
shim - 1000130085×1
351000178136Not stocked
X-1000268193 BRACKET×1
361000268193
$204.29
Mirrorbracket 1000268193×1
371000015397Not stocked
countersunk screw×1
381000092303
$0.86
Washer 10,5 St A2C - 1000092303×6
391000115114
$36.12
bracket axle - 1000115114×2
