WN Excavator 9503-2

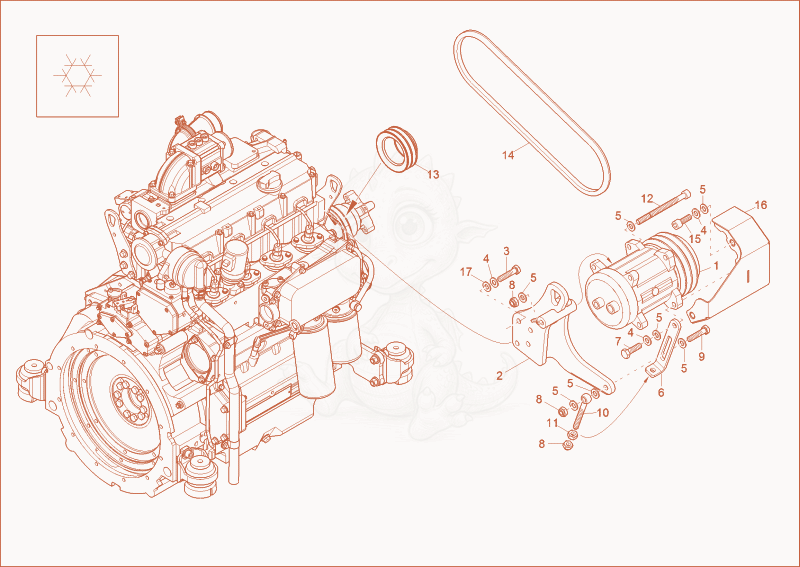

9503 ADDITIONAL PARTS OPTION AIR-CONDITIONING Diagram

Exploded parts diagram of the ADDITIONAL PARTS OPTION AIR-CONDITIONING of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000106938
    $693.80
    compressor aircondition X-1000358788 - 1000106938×1
  • 21000289387
    $263.57
    Bracketcompressor 1000289387×1
  • 31000015348Not stocked
    hex screw×4
  • 41000015438Not stocked
    lock washer×7
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
  • 61000051086
    $7.34
    holder - 1000051086×1
  • 71000048178Not stocked
    cheese head screw×1
  • 81000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 91000085413
    $1.20
    hex screw - 1000085413×1
  • 101000168460
    $7.82
    eye bolt - 1000168460×1
  • 111000015407Not stocked
    hexagon nut×1
  • 121000048237Not stocked
    cheese head screw×1
  • 131000159033
    $211.98
    belt pulley - 1000159033×1
  • 141000262330
    $35.87
    V-BELT - 1000262330×1
  • 151000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
  • 161000179528
    $65.03
    protection plate - 1000179528×1
  • 171000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
