WN Excavator 9503-2

9503 undercarriage Diagram

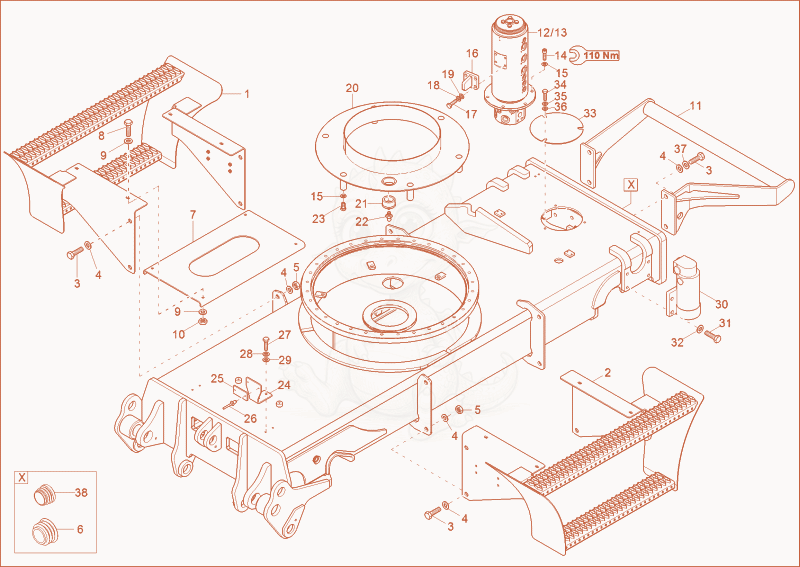

Exploded parts diagram of the undercarriage of a Wacker Neuson 9503, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000164167
$868.44
Footboard 1000164167×1
21000164167
$868.44
Footboard 1000164167×1
31000082423
$2.84
hex screw - 1000082423×12
41000015440Not stocked
u-washer×20
51000021948Not stocked
hexagon nut×8
61000066219Not stocked
plug×8
71000167499
$588.31
Connectionsheet 1000167499×1
81000015348Not stocked
hex screw×4
91000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×8
101000015408
$1.33
nut M10-8 A2C-DIN985 - 1000015408×4
111000181656
$612.93
Staticbar 1000181656×1
121000171116Not stocked
rotary junction×1
131000163415
$12,698.28
Swiveljoint 1000163415×1
141000022173Not stocked
cheese head screw×6
151000015450Not stocked
northlock disc×12
161000160922
$58.77
limit stop - 1000160922×1
171000085404
$0.93
hex screw - 1000085404×4
181000082609
$0.73
lock washer - 1000082609×4
191000049219Not stocked
washer×4
201000157112
$821.89
Greasering 1000157112×1
211000082794
$32.19
plug - 1000082794×1
221000015476Not stocked
grease nipple×1
231000085418
$9.74
hex screw - 1000085418×6
241000074831
$21.32
bracket reflector - 1000074831×2
251000004320
$1.60
REFLECTOR - 1000004320×2
261000082697
$0.80
blind rivet A3x12 - 1000082697×4
271000085390
$0.83
6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
281000015437Not stocked
lock washer×4
291000015431Not stocked
washer×4
301000078968
$1,948.85
oscillating axle cylinder - 1000078968×2
311000085428
$5.60
hex screw - 1000085428×8
321000015451Not stocked
northlock disc×8
331000157152
$104.97
COVER - 1000157152×1
341000085417
$1.06
hex screw - 1000085417×3
351000082609
$0.73
lock washer - 1000082609×3
361000049219Not stocked
washer×3
371000157110
$1.53
lock washer - 1000157110×4
381000186938
$1.80
PLUG - 1000186938×4
