WN Excavator 9503-2

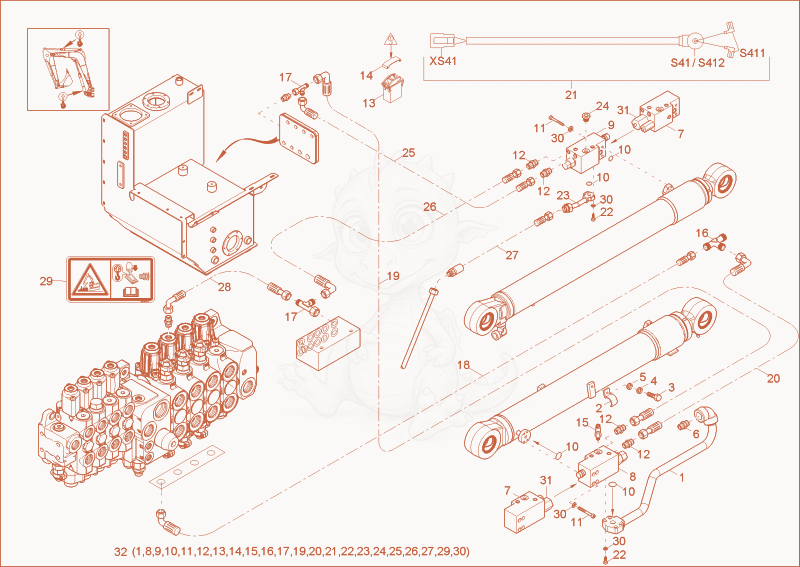

9503 STALLING LOAD - WARNING DEVICE F OPTION Diagram

Exploded parts diagram of the STALLING LOAD - WARNING DEVICE F OPTION of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000126995Not stocked
    cylinder pipes assy.×1
  • 21000015633Not stocked
    pipe clamp×1
  • 31000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
  • 41000015438Not stocked
    lock washer×1
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 61000083076Not stocked
    screw joint×1
  • 71000165069
    $1,965.30
    hose burst valve - 1000165069×2
  • 81000254580
    $1,089.20
    hose burst valve - 1000254580×1
  • 91000254578
    $1,089.20
    Hoseburstvalve 1000254578×1
  • 101000015678
    $0.38
    O-RING - 1000015678×4
  • 111000082529Not stocked
    cheese head screw×8
  • 121000015488Not stocked
    screw joint×4
  • 131000353495Not stocked
    tilt switch×1
  • 141000164610
    $8.99
    symbol - 1000164610×1
  • 151000015301Not stocked
    pressure switch×1
  • 161000015534Not stocked
    screw joint×1
  • 171000015515Not stocked
    screw joint×2
  • 181000112927
    $38.69
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2700 0 - 1000112927×1
  • 191000267376
    $158.27
    SLHYDR 1SC 6,0PN8 90 PN8 0 L3800 S0 - 1000267376×1
  • 201000267377
    $174.24
    SLHYDR 1SC 6,0PN8 90 PN8 0 L4600 S0 - 1000267377×1
  • 211000245140
    $182.46
    cable overloadwarning - 1000245140×1
  • 221000085497
    $0.90
    cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×8
  • 231000126004
    $165.99
    TUBE - 1000126004×1
  • 241000022438Not stocked
    screw joint×1
  • 251000267218
    $212.16
    SLHYDR 1SC 6,0PN8 90 PN8 0 L6700 S0 - 1000267218×1
  • 261000267217
    $159.49
    SLHYDR 1SC 6,0PN8 0 PN8 0 L7100 S0 - 1000267217×1
  • 271000167891
    $205.94
    Slhydr4Sp19Pp250Pe250L15500 1000167891×1
  • 281000076666
    $23.08
    SLHYDR 1SCP6,0PN8 0 PN8 90 L3300 0 - 1000076666×1
  • 291000252574
    $50.07
    sticker 'security' - 1000252574×1
  • 301000082617
    $1.08
    spring washer - 1000082617×16
  • 311000165091
    $706.59
    hose burst valve cartr. - 1000165091×1
  • 321000267224
    $4,706.20
    Overloadwarningf 1000267224×1
  • S411000245870
    $37.47
    socket - 1000245870×1
  • S4111000095373
    $0.89
    plug sleeve - 1000095373×2
  • S4121000245870
    $37.47
    socket - 1000245870×1
  • XS411000081808
    $16.43
    pin housing - 1000081808×1
